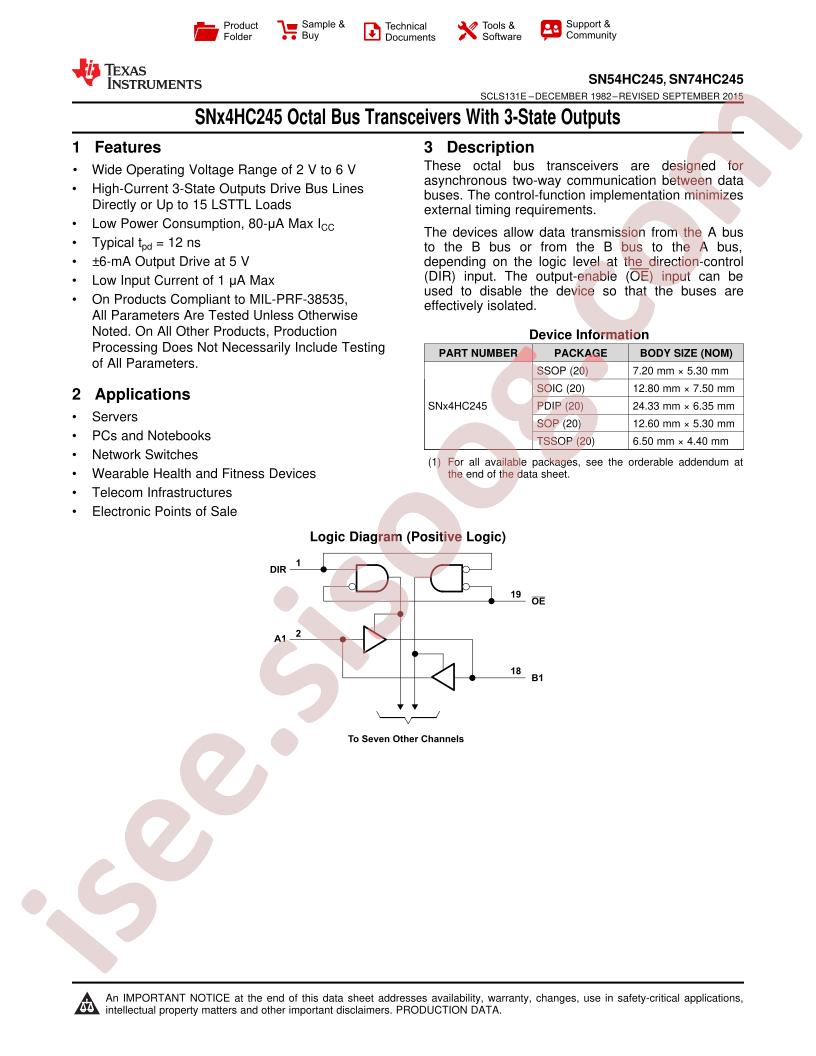

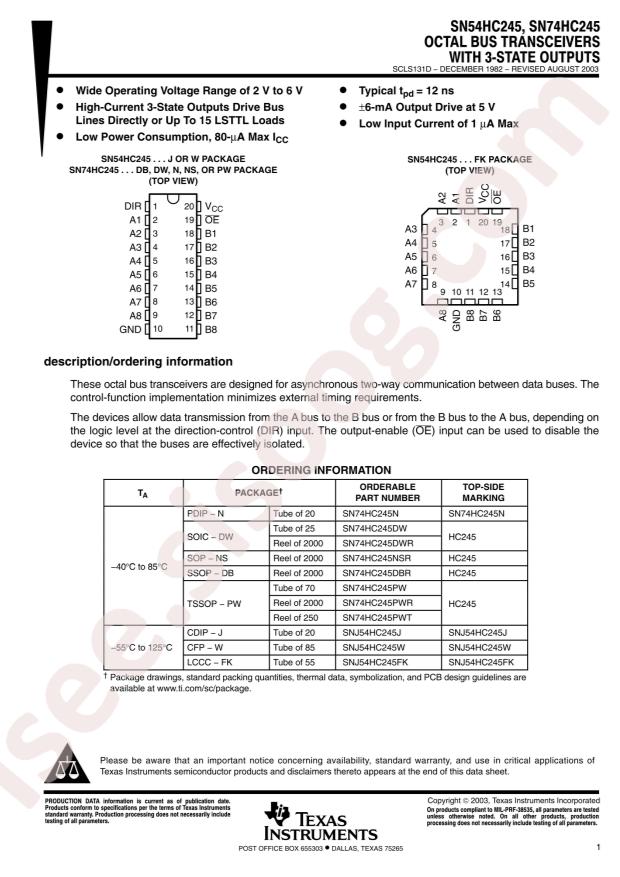

SN74HC245N Datasheet

SN74HC245N

Datasheet specifications

Datasheet's name SN74HC245N
File size 96.752 KB
File type pdf
Number of pages 22

Download Datasheet SN74HC245N

Download Datasheet

Other documentations

SN54HC245, SN74HC245 30 pages

Logic Guide 20 pages

Technical specifications

  • RoHS: true
  • Category: Logic ICs/Buffer/Driver/Transceiver
  • Datasheet: Texas Instruments SN74HC245N
  • output type: Tri-State
  • Logic Family: 74HC
  • Sink Current: 7.8mA
  • Source Current: 7.8mA
  • Supply Voltage: 2V~6V
  • Number of Elements: 1
  • Operating Temperature: -40°C~+85°C
  • Number of Bits per Element: 8
  • Package: DIP-20
  • Manufacturer: Texas Instruments
  • Voltage - Supply: 2V ~ 6V
  • Input Type: -
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 20-DIP (0.300", 7.62mm)
  • Part Status: Active
  • Current - Output High, Low: 7.8mA, 7.8mA
  • Series: 74HC
  • Supplier Device Package: 20-PDIP
  • Logic Type: Transceiver, Non-Inverting
  • Base Part Number: SN74HC2
