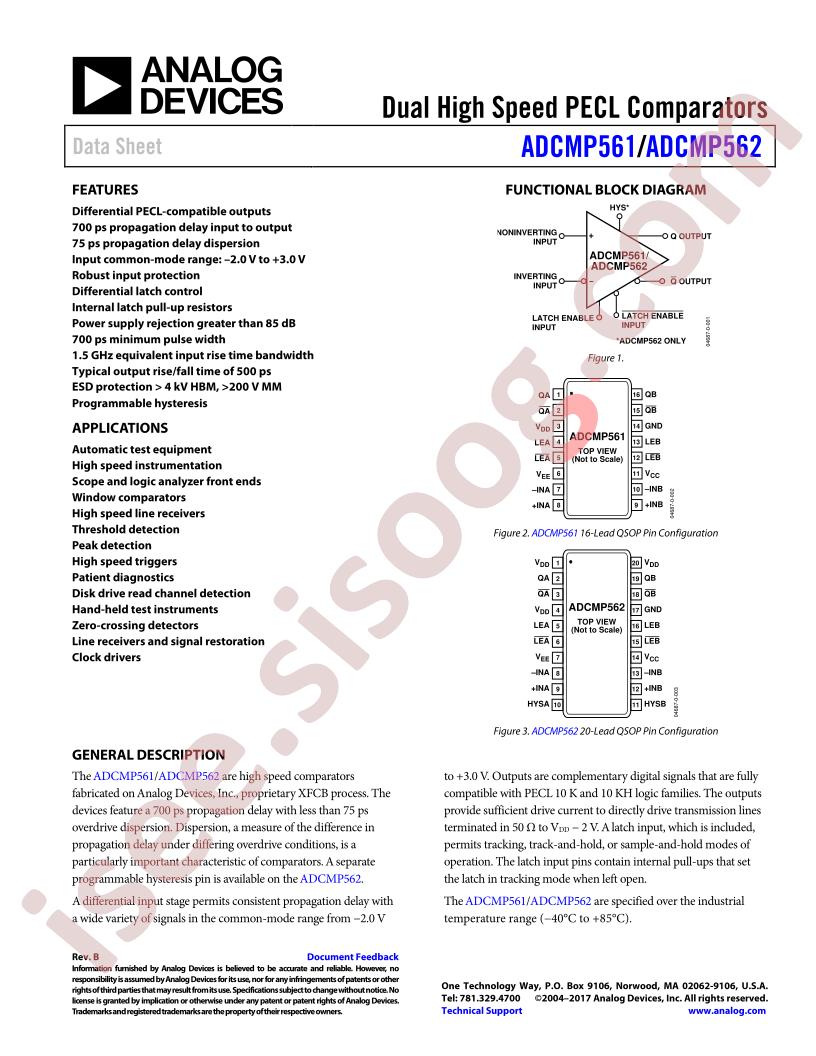

ADCMP561,562 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ADCMP561,562
|
|
حجم فایل
|
273.38
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
Manufacturer:
Analog Devices Inc.
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Type:
with Latch
-
Number of Elements:
2
-
Output Type:
Complementary, Differential, Open-Emitter, PECL
-
Voltage - Supply, Single/Dual (±):
±4.75V ~ 5.25V
-
Voltage - Input Offset (Max):
2mV @ -5.2V,5V
-
Current - Input Bias (Max):
3µA @ -5.2V,5V
-
Current - Output (Typ):
30mA
-
Current - Quiescent (Max):
5mA, 28mA, 13mA
-
CMRR, PSRR (Typ):
80dB CMRR, 85dB PSRR
-
Propagation Delay (Max):
0.83ns
-
Hysteresis:
±1mV
-
Operating Temperature:
-40°C ~ 85°C
-
Package / Case:
20-SSOP (0.154", 3.90mm Width)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
20-QSOP
-
Base Part Number:
ADCMP562
