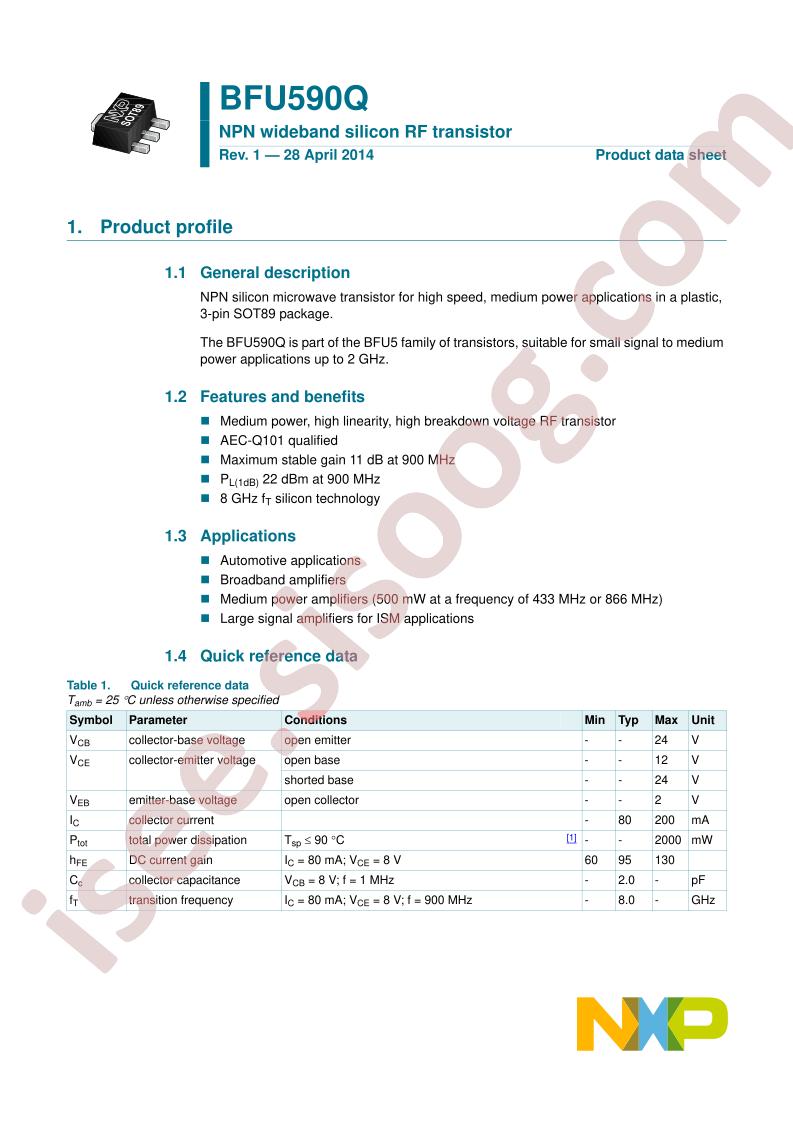

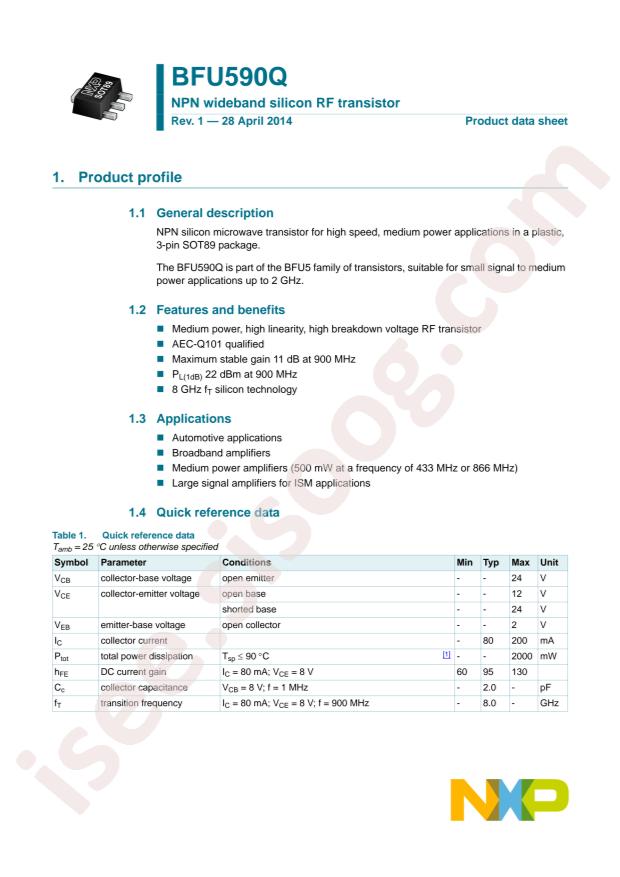

دیتاشیت BFU590QX
مشخصات دیتاشیت
| نام دیتاشیت |
BFU590Q
|
| حجم فایل |
261.065
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
19
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
NXP Semicon BFU590QX
-
Transistor Type:
NPN
-
Operating Temperature:
-40°C~+150°C@(Tj)
-
Collector Current (Ic):
80mA
-
Power Dissipation (Pd):
2W
-
Transition Frequency (fT):
8GHz
-
DC Current Gain (hFE@Ic,Vce):
95@80mA,8V
-
Collector Cut-Off Current (Icbo):
1nA
-
Collector-Emitter Breakdown Voltage (Vceo):
12V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
-
-
Package:
SOT-89
-
Manufacturer:
NXP Semicon
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Collector Emitter Breakdown (Max):
12V
-
Frequency - Transition:
8GHz
-
Noise Figure (dB Typ @ f):
-
-
Gain:
6.5dB
-
Power - Max:
2W
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
60 @ 80mA, 8V
-
Current - Collector (Ic) (Max):
200mA
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-243AA
-
Supplier Device Package:
SOT-89-3
-
Base Part Number:
BFU59
-
detail:
RF Transistor NPN 12V 200mA 8GHz 2W Surface Mount SOT-89-3
