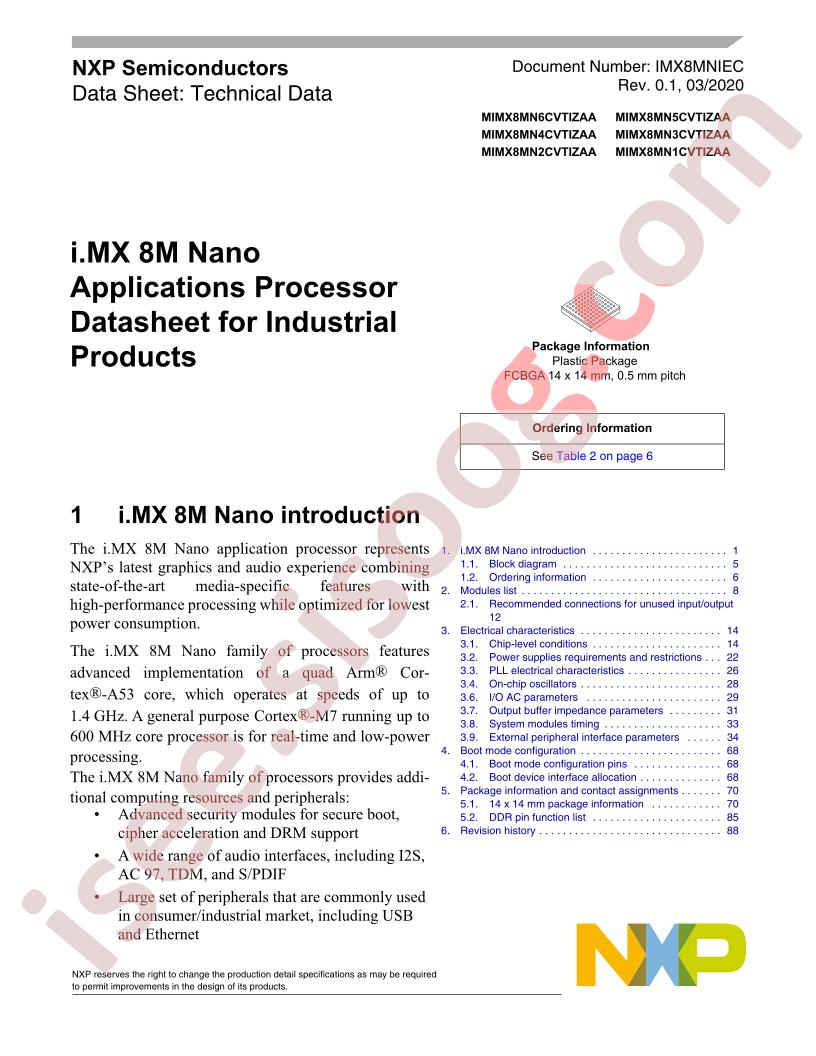

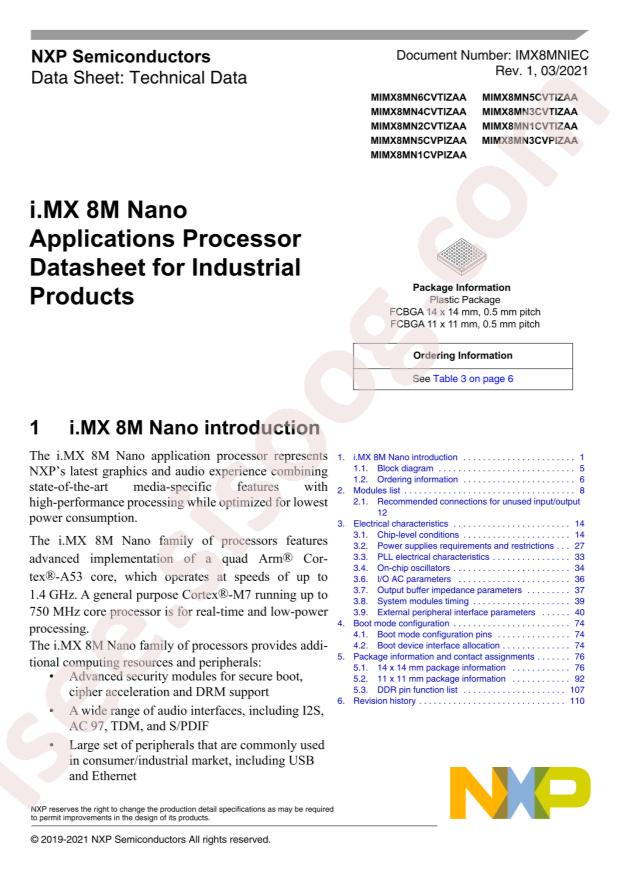

دیتاشیت MIMX8MN6CVTIZAA
مشخصات دیتاشیت
| نام دیتاشیت |
IMX8MNIEC
|
| حجم فایل |
1585.158
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
89
|
مشخصات
-
CAN:
-
-
I2C:
4
-
I2S:
5
-
SPI:
3
-
RoHS:
true
-
EEPROM:
-
-
CPU Core:
ARM-ASeries
-
Category:
Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
-
RAM Size:
512KB
-
Watchdog:
-
-
ADC (Bit):
-
-
DAC (Bit):
-
-
Datasheet:
NXP Semicon MIMX8MN6CVTIZAA
-
PWM (Bit):
-
-
8Bit Timer:
-
-
LCD Module:
Yes
-
LED Module:
-
-
UART/USART:
4
-
16Bit Timer:
-
-
32Bit Timer:
-
-
Real-Time Clock:
-
-
Application Area:
-
-
CPU Maximum Speed:
750MHz;1400MHz
-
GPIO Ports Number:
-
-
Low-Voltage Detect:
-
-
CCP Capture/Compare:
-
-
Internal Comparator:
-
-
Internal Oscillator:
-
-
Peripheral/Function:
TRNG
-
Program Memory Type:
-
-
Direct Memory Access:
-
-
Program Storage Size:
-
-
Universal Serial Bus:
Yes
-
communication protocol:
-
-
Operating Voltage Range:
-
-
Infrared Data Association:
-
-
Operating Temperature Range:
-40°C~+105°C
-
Secure Digital Input and Output:
-
-
Package:
LFBGA-486
-
Manufacturer:
NXP Semicon
-
Series:
i.MX8MN
-
Part Status:
Active
-
Core Processor:
ARM® Cortex®-A53
-
Number of Cores/Bus Width:
4 Core, 32-Bit
-
Speed:
1.4GHz
-
Co-Processors/DSP:
ARM® Cortex®-M7
-
RAM Controllers:
DDR3L, DDR4, LPDDR4
-
Graphics Acceleration:
Yes
-
Display & Interface Controllers:
LCD, MIPI-CSI, MIPI-DSI
-
Ethernet:
GbE
-
SATA:
-
-
USB:
USB 2.0 + PHY (2)
-
Voltage - I/O:
-
-
Operating Temperature:
-40°C ~ 105°C (TJ)
-
Security Features:
ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS
-
Package / Case:
486-LFBGA
-
Supplier Device Package:
486-LFBGA (14x14)
-
Additional Interfaces:
I²C, PCIe, SDHC, SPI, UART
-
Base Part Number:
MIMX8
-
detail:
ARM® Cortex®-A53 Microprocessor IC i.MX8MN 4 Core, 32-Bit 1.4GHz 486-LFBGA (14x14)
