CC2640F128RHBT 数据手册
其他文档
技术规格
- RoHS: true
- Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
- Data Rate: -

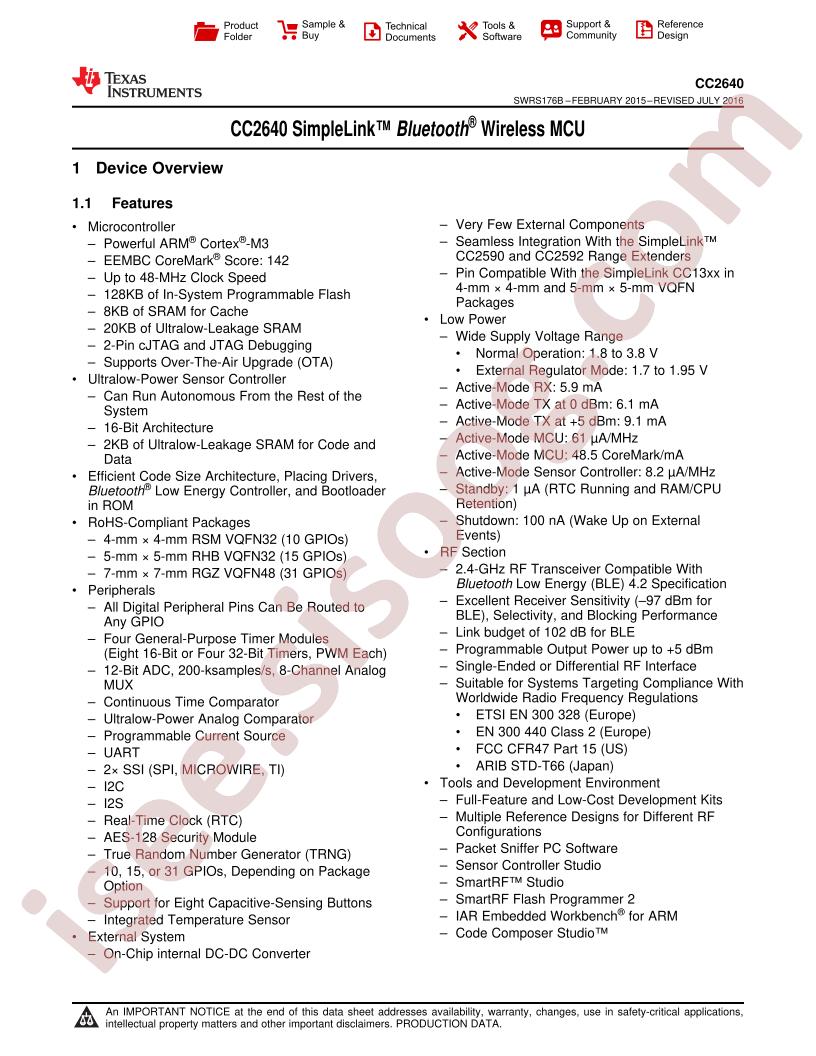

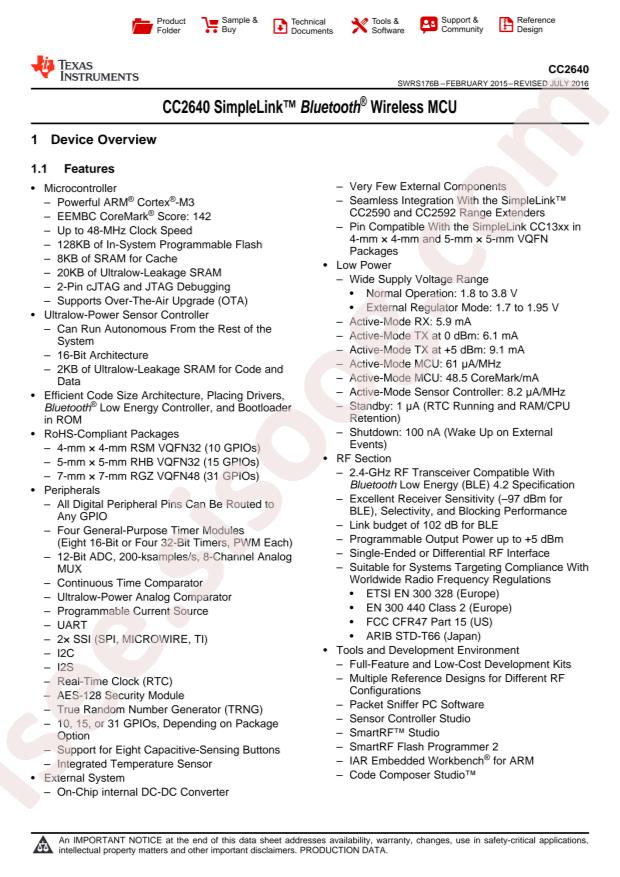

- Datasheet: Texas Instruments CC2640F128RHBT
- Interface: I2C,SPI, UART, I2S, JTAG
- Applications: -
- Frequency Range: -
- Receive Current: -
- Operating Voltage: -
- Operating Temperature: -
- Current Of Transmitting: -
- Typical Application Frequency: -
- Package: HVQFN-32-EP(5x5)
- Manufacturer: Texas Instruments
- Current - Transmitting: 6.1mA ~ 9.1mA
- Base Part Number: CC2640
- Type: TxRx + MCU
- Package / Case: 32-VFQFN Exposed Pad
- Frequency: 2.4GHz
- Series: SimpleLink™
- Power - Output: 5dBm
- Data Rate (Max): 1Mbps
- Mounting Type: Surface Mount
- Protocol: Bluetooth v5.1
- Part Status: Active
- RF Family/Standard: Bluetooth
- Memory Size: 128kB Flash, 28kB SRAM
- Supplier Device Package: 32-VQFN (5x5)
- GPIO: 15
- Current - Receiving: 5.9mA ~ 6.1mA
- Sensitivity: -97dBm
- Modulation: DSSS, O-QPSK, GFSK
- Serial Interfaces: I²C, I²S, JTAG, SPI, UART
- Packaging: Cut Tape (CT)
- Voltage - Supply: 1.8V ~ 3.8V
- detail: IC RF TxRx + MCU Bluetooth Bluetooth v5.1 2.4GHz 32-VFQFN Exposed Pad
