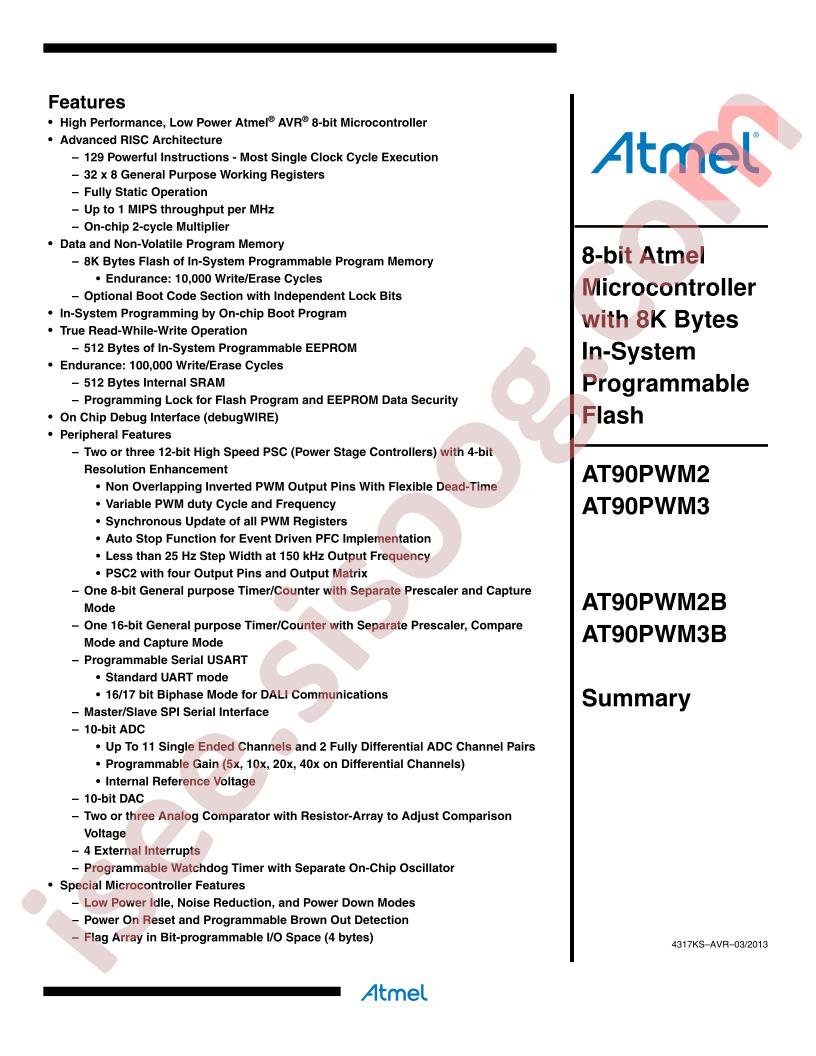

AT90PWM(2,3)(B) Summary 数据手册
数据手册规格
| 数据手册名称 | AT90PWM(2,3)(B) Summary |
|---|---|
| 文件大小 | 496.255 千字节 |
| 文件类型 | |
| 页数 | 25 |
下载数据手册 AT90PWM(2,3)(B) Summary |
下载数据手册 |
|---|
其他文档
AT90PWM2,3(B) Summary 25 pages
技术规格
- RoHS: true
- CPU Core: AVR
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): 10bit
- CPU Maximum Speed: 16MHz
- GPIO Ports Number: 27
- Low-Voltage Detect: Yes
- Internal Oscillator: Yes
- Program Storage Size: 8KB
- Operating Voltage Range: 2.7V~5.5V
- Operating Temperature Range: -40°C~+105°C
- Package: QFN-32-EP(7x7)
- Manufacturer: Microchip Tech
- Series: AVR® 90PWM Lighting
- Packaging: Tray
- Part Status: Active
- Core Processor: AVR
- Core Size: 8-Bit
- Speed: 16MHz
- Connectivity: SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 27
- Program Memory Size: 8KB (8K x 8)
- Program Memory Type: FLASH
- EEPROM Size: 512 x 8
- RAM Size: 512 x 8
- Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
- Data Converters: A/D 11x10b; D/A 1x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 32-VQFN Exposed Pad
- Supplier Device Package: 32-QFN (7x7)
- Base Part Number: AT90PWM3
- detail: AVR AVR® 90PWM Lighting Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) FLASH 32-QFN (7x7)
