MC33926PNBR2 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MC33926PNBR2 |
|---|---|
| حجم فایل | 69.171 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 35 |
دانلود دیتاشیت MC33926PNBR2 |
دانلود دیتاشیت |
|---|
سایر مستندات

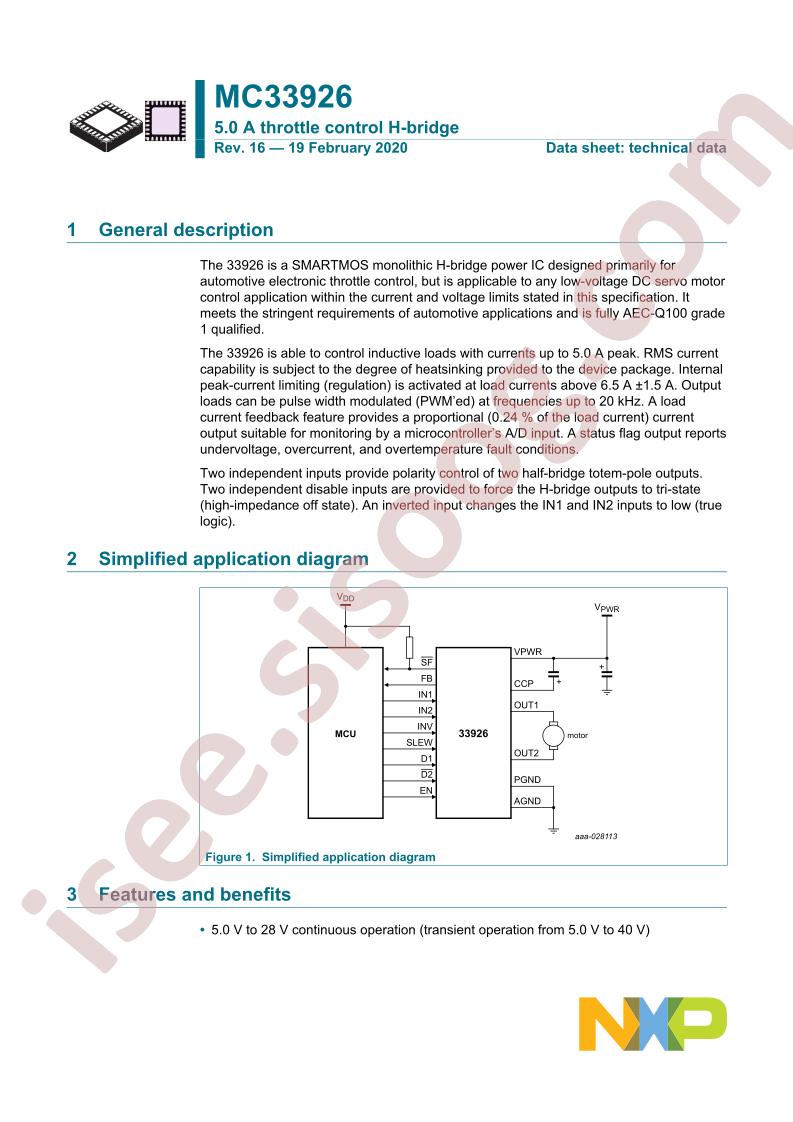

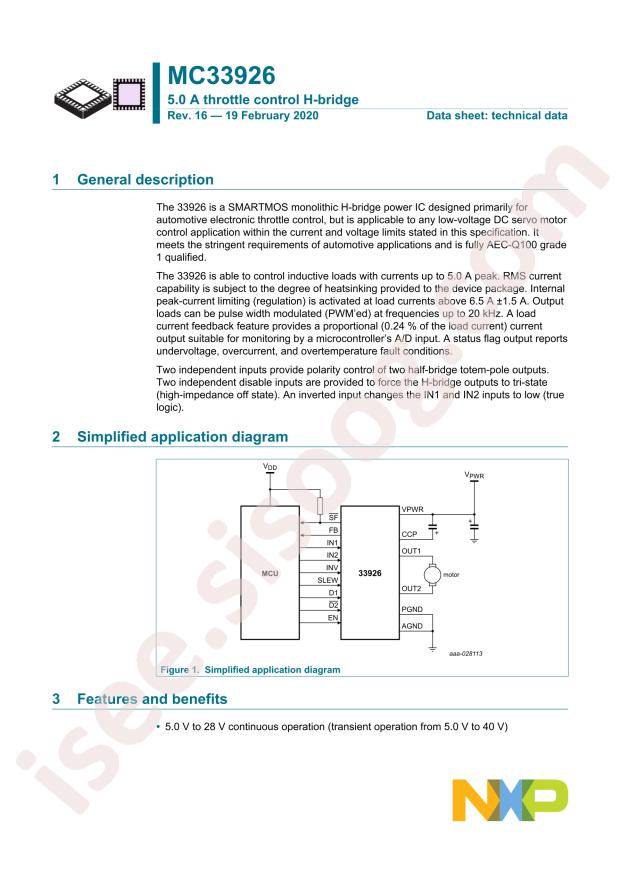

MC33926 Datasheet 35 pages
مشخصات فنی
- RoHS: true
- Type: Brush DC Motor
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: NXP Semicon MC33926PNBR2
- Interface: Parallel
- Output Current: 5A
- Supply Voltage: 5V~28V
- Operating Temperature: -40°C~+125°C@(Ta)
- Package: PQFN-32-EP(8x8)
- Manufacturer: NXP Semicon
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Motor Type - Stepper: -
- Motor Type - AC, DC: Brushed DC
- Function: Driver - Fully Integrated, Control and Power Stage
- Output Configuration: Half Bridge (2)
- Technology: CMOS
- Step Resolution: -
- Applications: Automotive
- Current - Output: 5A
- Voltage - Supply: 5V ~ 28V
- Voltage - Load: 5V ~ 28V
- Mounting Type: Surface Mount
- Package / Case: 32-PowerQFN
- Supplier Device Package: 32-PQFN (8x8)
- Base Part Number: MC339
- detail: Motor Driver CMOS Parallel 32-PQFN (8x8)
