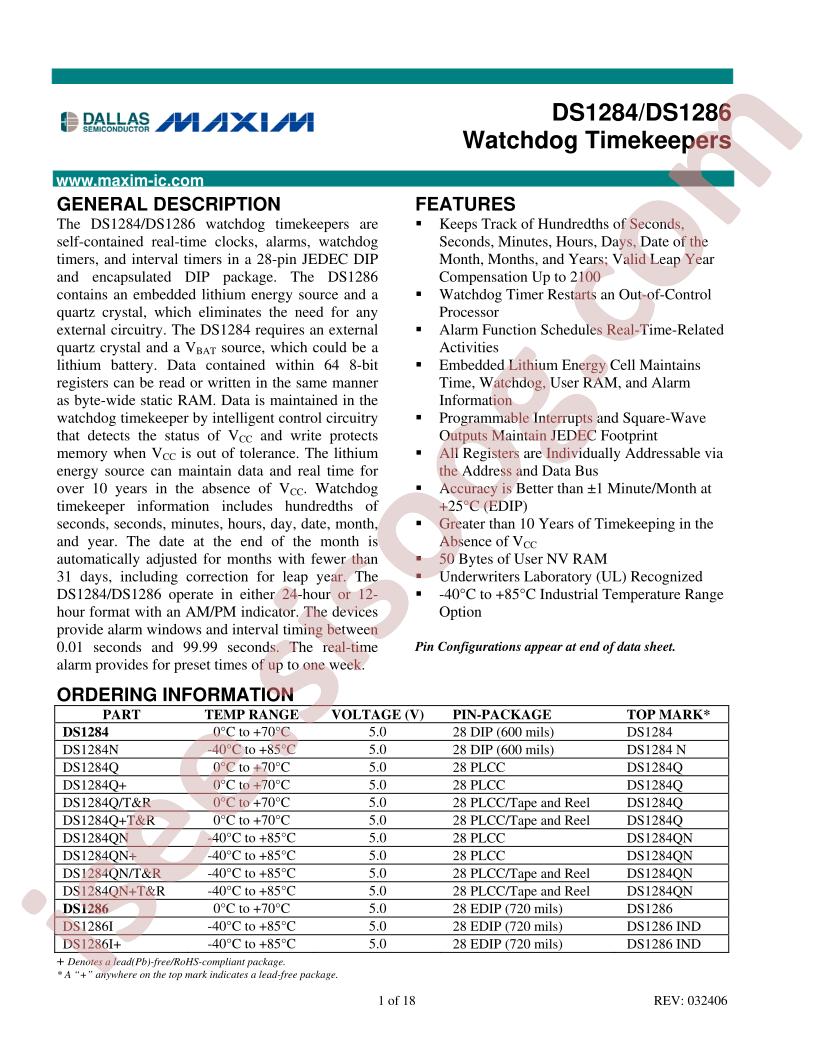

DS1284,1286 دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت DS1284,1286	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Features: Alarm, Leap Year, Square Wave Output, SRAM, Watchdog Timer
Supplier Device Package: 28-EDIP
Voltage - Supply, Battery: 2.4V ~ 3.5V
Date Format: YY-MM-DD-dd
Memory Size: 50B
Part Status: Obsolete
Operating Temperature: -40°C ~ 85°C
Type: Clock/Calendar
Series: -
Interface: Parallel
Time Format: HH:MM:SS:hh (12/24 hr)
Mounting Type: Through Hole
Package / Case: 28-DIP Module (0.61", 15.49mm), 23 Leads
Current - Timekeeping (Max): 7mA @ 5V
Packaging: Tube
Voltage - Supply: 4.5V ~ 5.5V
Base Part Number: DS1286
Manufacturer: Maxim Integrated
detail: Real Time Clock (RTC) IC Clock/Calendar 50B Parallel 28-DIP Module (0.61", 15.49mm), 23 Leads
