دیتاشیت FDS3890
مشخصات دیتاشیت
| نام دیتاشیت |
FDS3890
|
| حجم فایل |
184.875
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Type:
2 N-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

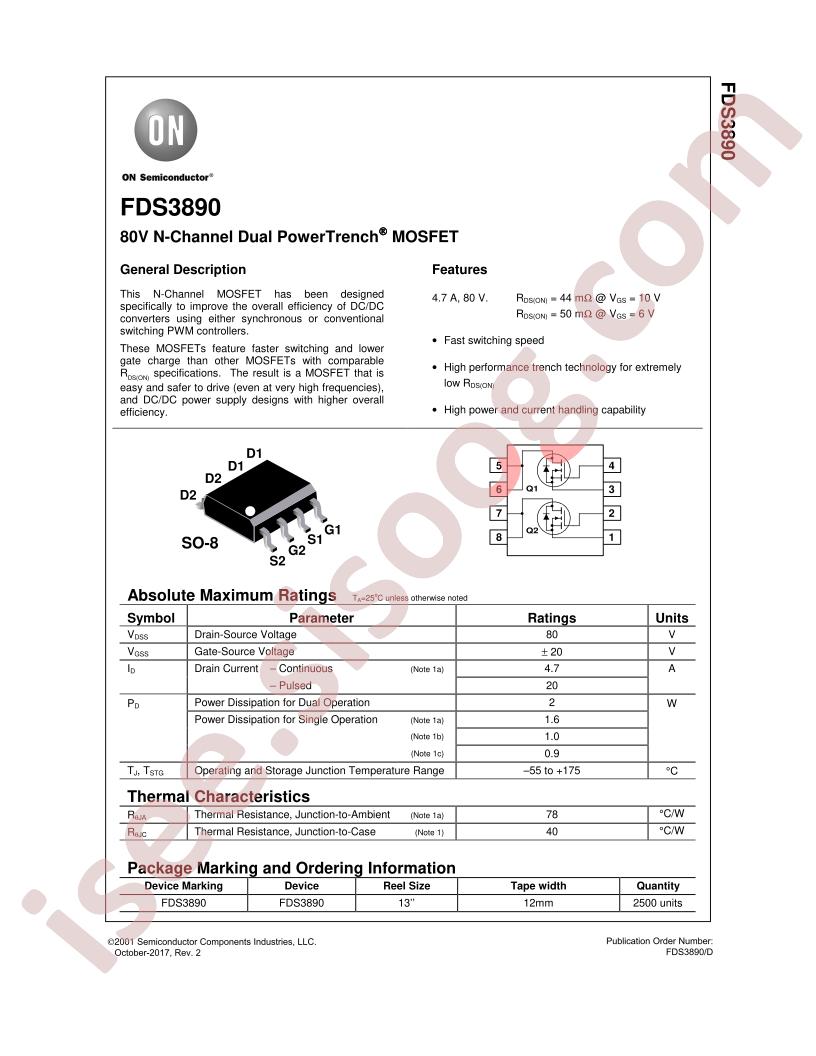

Datasheet:
onsemi FDS3890
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
900mW
-
Total Gate Charge (Qg@Vgs):
35nC@10V
-
Drain Source Voltage (Vdss):
80V
-
Input Capacitance (Ciss@Vds):
1180pF@40V
-
Continuous Drain Current (Id):
4.7A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
44mΩ@4.7A,10V
-
Package:
SOP-8
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
80V
-
Current - Continuous Drain (Id) @ 25°C:
4.7A
-
Rds On (Max) @ Id, Vgs:
44mOhm @ 4.7A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
35nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
1180pF @ 40V
-
Power - Max:
900mW
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
FDS38
-
detail:
Mosfet Array 2 N-Channel (Dual) 80V 4.7A 900mW Surface Mount 8-SOIC
