دیتاشیت FAN3100TSX

FAN3100

مشخصات دیتاشیت

نام دیتاشیت FAN3100
حجم فایل 1742.845 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت FAN3100

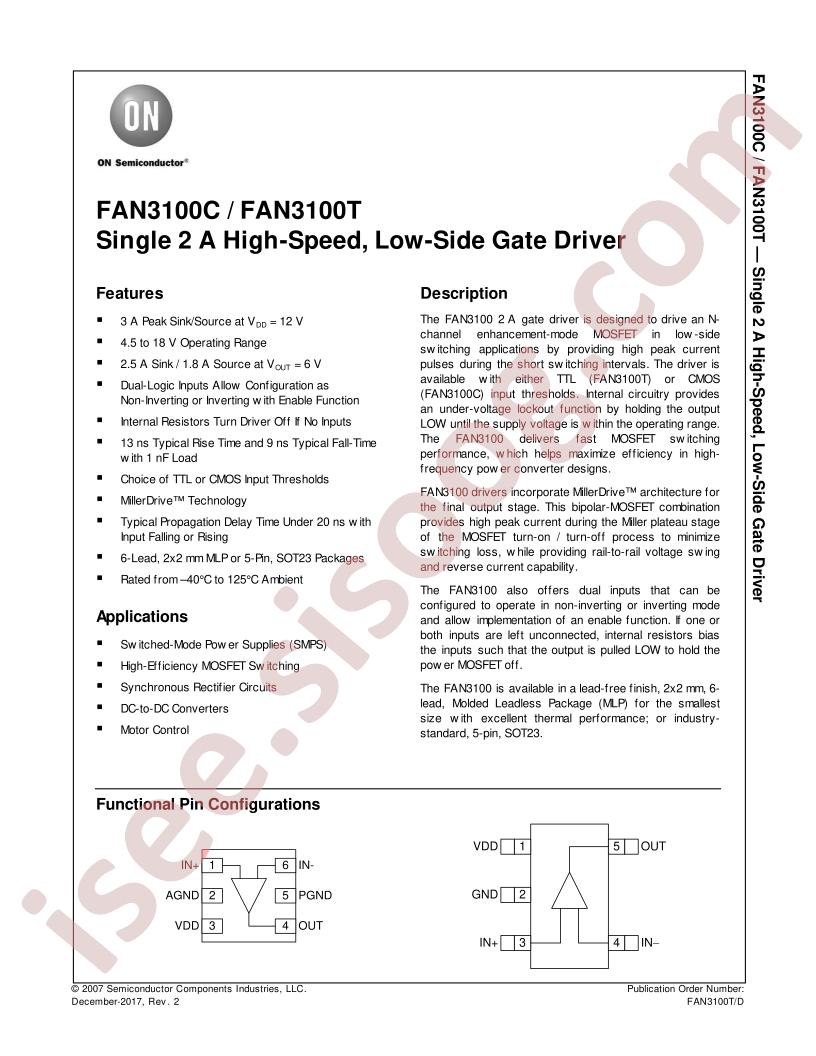

FAN3100 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi FAN3100TSX
  • Fall Time: 9ns
  • Load Type: MOSFET
  • Rise Time: 13ns
  • Supply Voltage: 4.5V~18V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Peak Output Current(sink): 3A
  • Peak Output Current(source): 3A
  • Package: SOT-23-5
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Channel Type: Single
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 18V
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Current - Peak Output (Source, Sink): 3A, 3A
  • Input Type: Inverting, Non-Inverting
  • Rise / Fall Time (Typ): 13ns, 9ns
  • Mounting Type: Surface Mount
  • Package / Case: SC-74A, SOT-753
  • Supplier Device Package: SOT-23-5
  • Base Part Number: FAN3100
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting SOT-23-5
