دیتاشیت BAV103
مشخصات دیتاشیت
| نام دیتاشیت |
BAV103
|
| حجم فایل |
73.13
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Diodes - General Purpose
-
Datasheet:

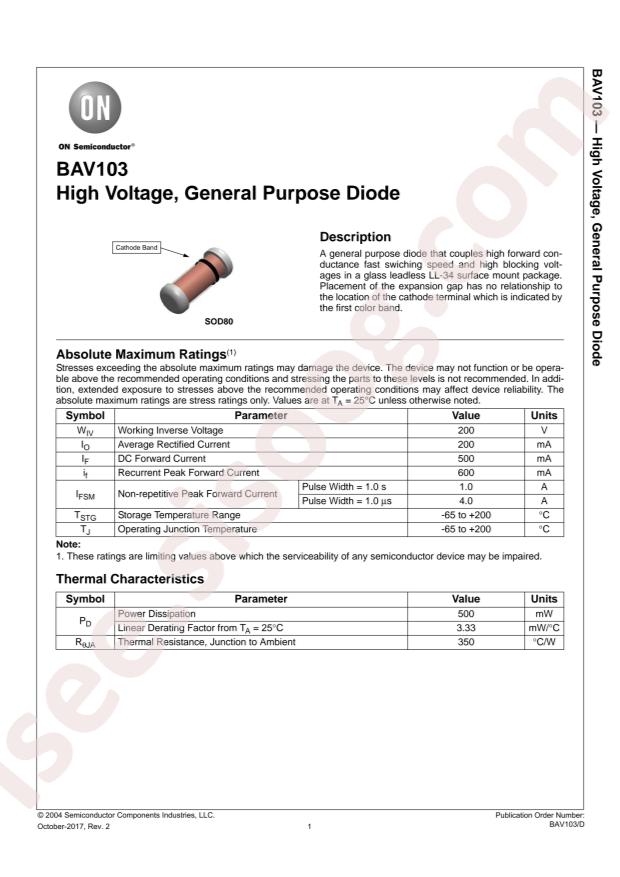

onsemi BAV103
-
Diode Configuration:
-
-
Reverse Voltage (Vr):
200V
-
Forward Voltage (Vf@If):
1.25V@200mA
-
Reverse Leakage Current:
100nA@200V
-
Average Rectified Current (Io):
200mA
-
Package:
SOD-80
-
Manufacturer:
onsemi
-
Power Dissipation:
400mW
-
Operating Temperature:
+175°C@(Tj)
-
Reverse Recovery Time (trr):
50ns
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
200V
-
Current - Average Rectified (Io):
200mA
-
Voltage - Forward (Vf) (Max) @ If:
1.25V @ 200mA
-
Speed:
Small Signal =< 200mA (Io), Any Speed
-
Current - Reverse Leakage @ Vr:
100nA @ 200V
-
Capacitance @ Vr, F:
5pF @ 0V, 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
DO-213AC, MINI-MELF, SOD-80
-
Supplier Device Package:
SOD-80
-
Operating Temperature - Junction:
-65°C ~ 200°C
-
Base Part Number:
BAV10
-
detail:
Diode Standard 200V 200mA Surface Mount SOD-80
