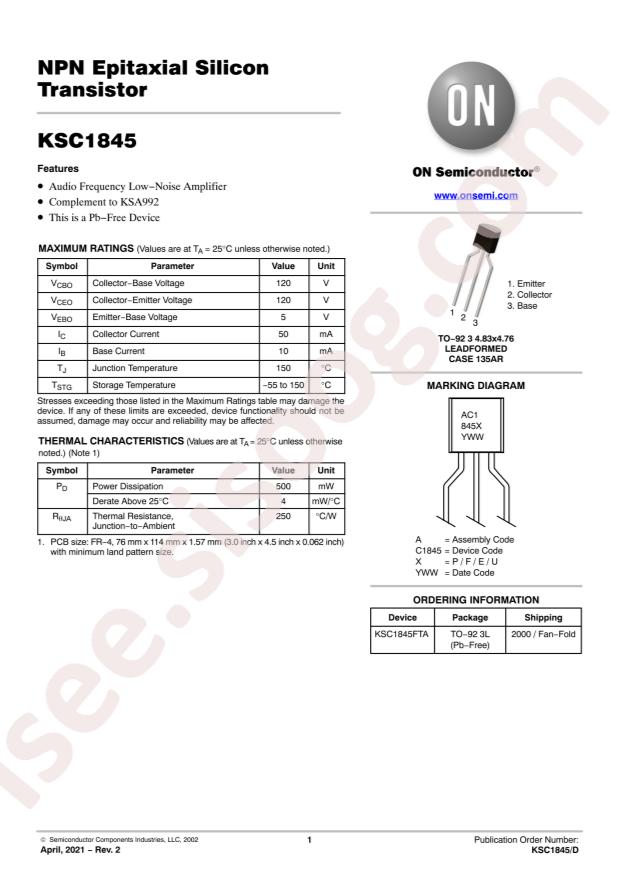

- دیتاشیت KSC1845FTA
KSC1845FTA دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | KSC1845FTA |
|---|---|
| حجم فایل | 66.671 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت KSC1845FTA |
دانلود دیتاشیت |
|---|
سایر مستندات
KSC1845 8 pages
KSC1845FTA 5 pages
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: onsemi KSC1845FTA
- Transistor Type: NPN
- Operating Temperature: +150°C@(Tj)
- Collector Current (Ic): 50mA
- Power Dissipation (Pd): 500mW
- Transition Frequency (fT): 100MHz
- DC Current Gain (hFE@Ic,Vce): 300@1mA,6V
- Collector Cut-Off Current (Icbo): 50nA
- Collector-Emitter Breakdown Voltage (Vceo): 120V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 70mV@10mA,1mA
- Package: TO-92-3
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Current - Collector (Ic) (Max): 50mA
- Voltage - Collector Emitter Breakdown (Max): 120V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 1mA, 10mA
- Current - Collector Cutoff (Max): 50nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 300 @ 1mA, 6V
- Power - Max: 500mW
- Frequency - Transition: 110MHz
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Supplier Device Package: TO-92-3
- Base Part Number: KSC1845
- detail: Bipolar (BJT) Transistor NPN 120V 50mA 110MHz 500mW Through Hole TO-92-3
