NC7SZ32M5X 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Series: 7SZ
- Category: Logic ICs/Gates

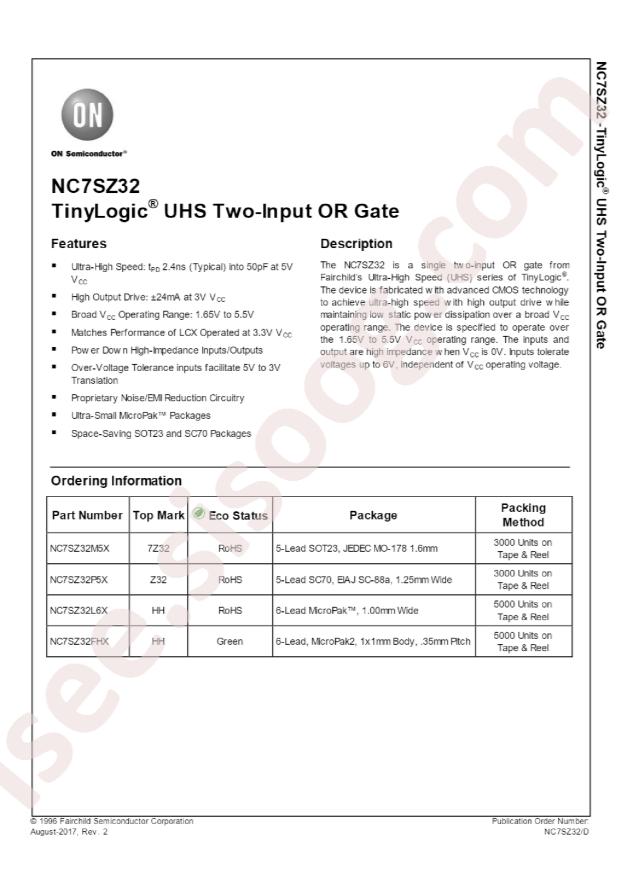

- Datasheet: onsemi NC7SZ32M5X
- Sink Current: 32mA
- Source Current: 32mA
- Supply Voltage: 1.65V~5.5V
- Logic Gate Type: ORGate
- Number of Channels: 1
- Operating Temperature: -40°C~+85°C
- Propagation Delay Time: 4.5ns@5V,50pF
- Quiescent Current (Max): 2uA
- Package: SC-74A
- Manufacturer: onsemi
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Logic Type: OR Gate
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 2µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: -
- Logic Level - High: -
- Max Propagation Delay @ V, Max CL: 4.5ns @ 5V, 50pF
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-5
- Package / Case: SC-74A, SOT-753
- Base Part Number: NC7SZ3
- detail: OR Gate IC 1 Channel SOT-23-5
