دیتاشیت MBRS120T3G
مشخصات دیتاشیت
| نام دیتاشیت | MBRS120T3G, SBRS8120T3G |
|---|---|
| حجم فایل | 258.97 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت MBRS120T3G, SBRS8120T3G |

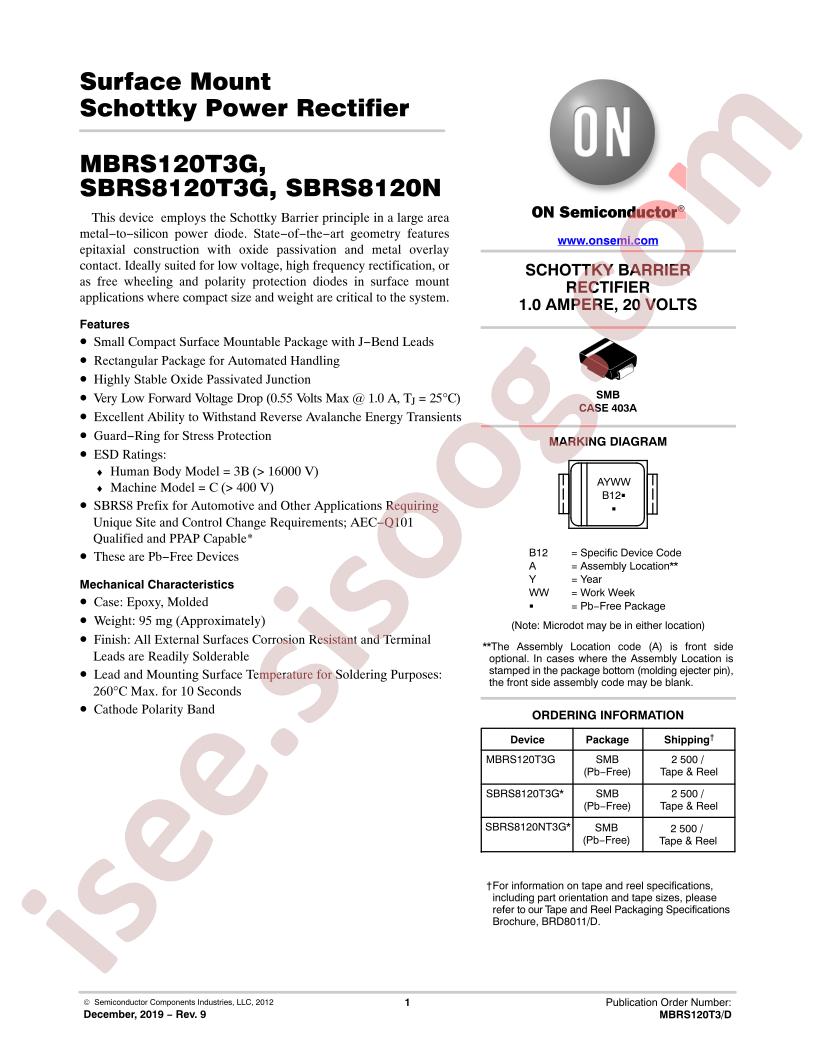

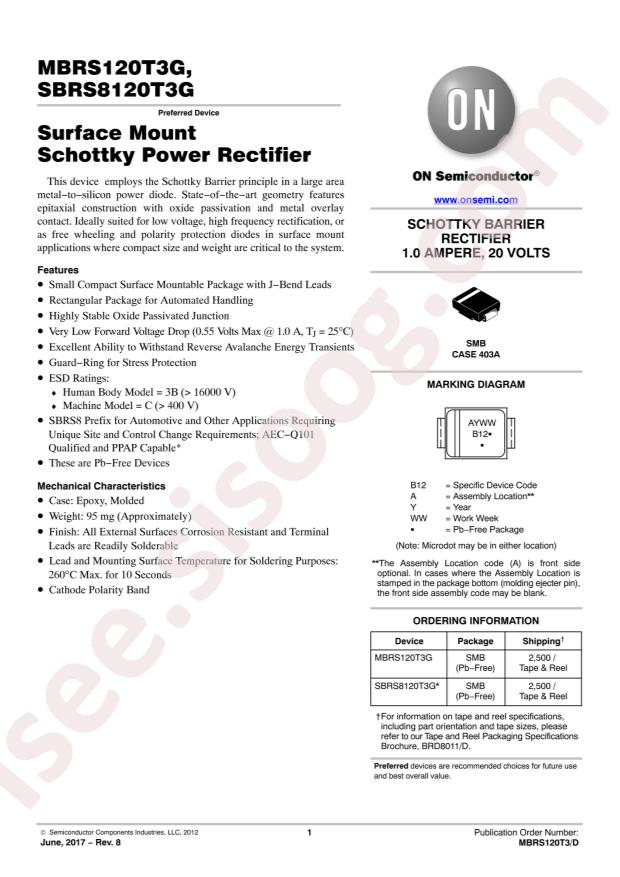

MBRS120T3G, SBRS8120T3G Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: onsemi MBRS120T3G
- Reverse Voltage (Vr): 20V
- Forward Voltage (Vf@If): 600mV@1A
- Reverse Leakage Current (Ir): 1mA@20V
- Average Rectified Current (Io): 1A
- Package: SMB(DO-214AA)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 600mV @ 1A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 1mA @ 20V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMB
- Operating Temperature - Junction: -65°C ~ 125°C
- Base Part Number: MBRS120
- detail: Diode Schottky 20V 1A Surface Mount SMB
