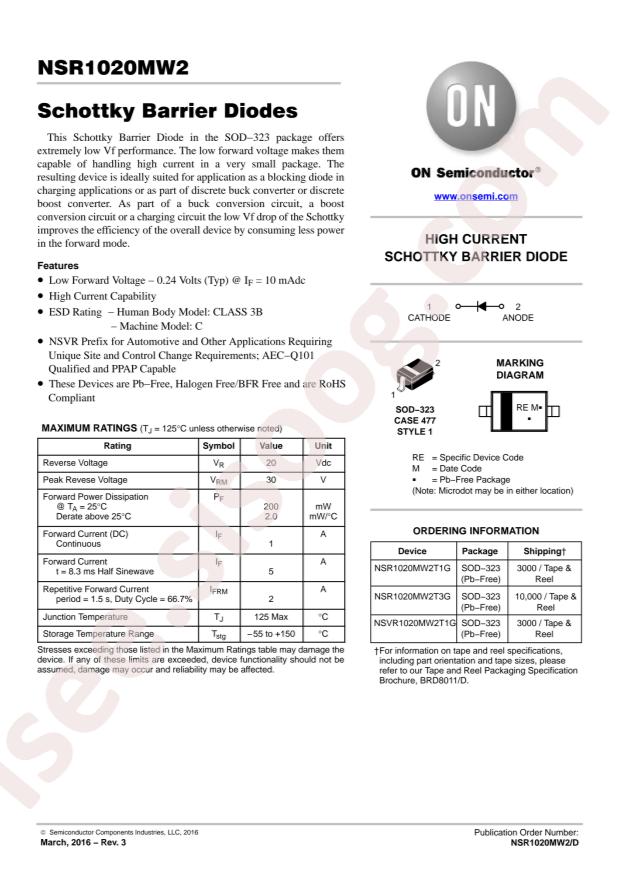

دیتاشیت NSR1020MW2T1G
مشخصات دیتاشیت
| نام دیتاشیت |
NSR1020MW2T1G
|
| حجم فایل |
48.841
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
3
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
onsemi NSR1020MW2T1G
-
Reverse Voltage (Vr):
20V
-
Forward Voltage (Vf@If):
540mV@1A
-
Reverse Leakage Current (Ir):
40uA@15V
-
Average Rectified Current (Io):
1A
-
Package:
SOD-323
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
20V
-
Current - Average Rectified (Io):
1A (DC)
-
Voltage - Forward (Vf) (Max) @ If:
540mV @ 1A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
40µA @ 15V
-
Capacitance @ Vr, F:
29pF @ 5V, 1MHz
-
Mounting Type:
Surface Mount
-

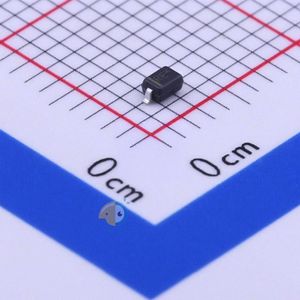

Package / Case:
SC-76, SOD-323
-
Supplier Device Package:
SOD-323
-
Operating Temperature - Junction:
125°C (Max)
-
Base Part Number:
NSR102
-
detail:
Diode Schottky 20V 1A (DC) Surface Mount SOD-323
