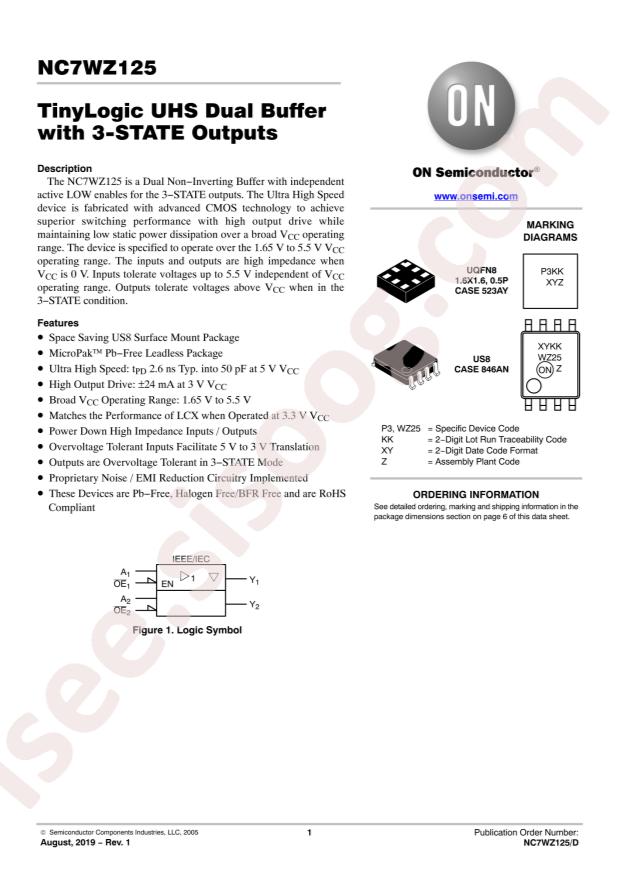

NC7WZ125K8X دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NC7WZ125K8X
|
|
حجم فایل
|
73.411
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Category:
Logic ICs/Buffer/Driver/Transceiver
-
Datasheet:
onsemi NC7WZ125K8X
-
Input type:
-
-
output type:
Tri-State
-
Logic Family:
7WZ
-
Sink Current:
32mA
-
Source Current:
32mA
-
Supply Voltage:
1.65V~5.5V
-
Number of Channels:
1
-
Operating Temperature:
-40°C~+85°C
-
Package:
US-8
-
Manufacturer:
onsemi
-
Series:
7WZ
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Logic Type:
Buffer, Non-Inverting
-
Number of Elements:
2
-
Number of Bits per Element:
1
-
Current - Output High, Low:
32mA, 32mA
-
Voltage - Supply:
1.65V ~ 5.5V
-
Mounting Type:
Surface Mount
-
Package / Case:
8-VFSOP (0.091", 2.30mm Width)
-
Supplier Device Package:
US8
-
Base Part Number:
NC7WZ1
-
detail:
Buffer, Non-Inverting 2 Element 1 Bit per Element 3-State Output US8
