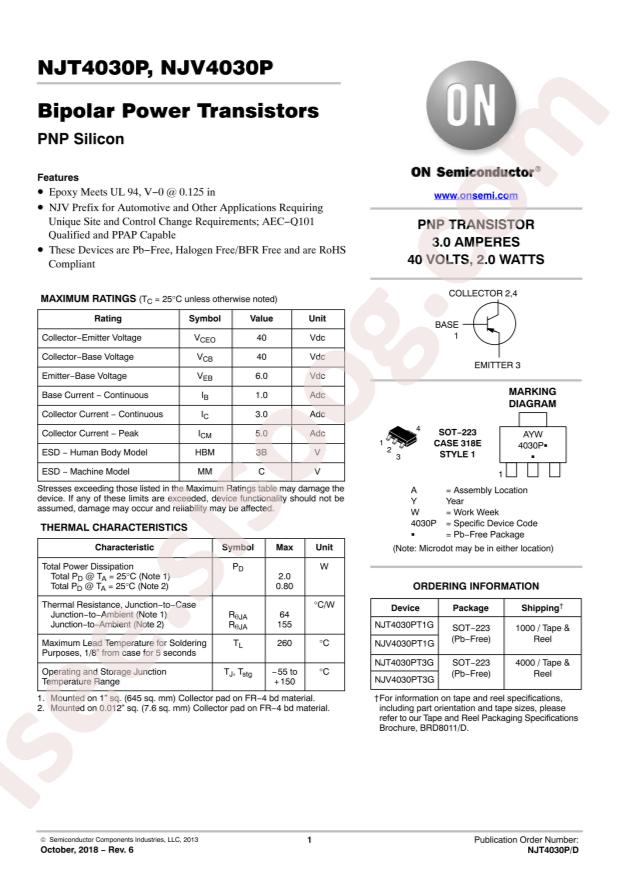

NJT4030PT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NJT4030PT1G
|
|
حجم فایل
|
86.943
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi NJT4030PT1G
-
Transistor Type:
PNP
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
3A
-
Power Dissipation (Pd):
2W
-
Transition Frequency (fT):
160MHz
-
DC Current Gain (hFE@Ic,Vce):
200@1A,1V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
40V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
500mV@300mA,3A
-
Package:
SOT-223
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
3A
-
Voltage - Collector Emitter Breakdown (Max):
40V
-
Vce Saturation (Max) @ Ib, Ic:
500mV @ 300mA, 3A
-
Current - Collector Cutoff (Max):
100nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
200 @ 1A, 1V
-
Power - Max:
2W
-
Frequency - Transition:
160MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-261-4, TO-261AA
-
Supplier Device Package:
SOT-223
-
Base Part Number:
NJT4030
-
detail:
Bipolar (BJT) Transistor PNP 40V 3A 160MHz 2W Surface Mount SOT-223
