2SA2222SG دیتاشیت

مشخصات دیتاشیت

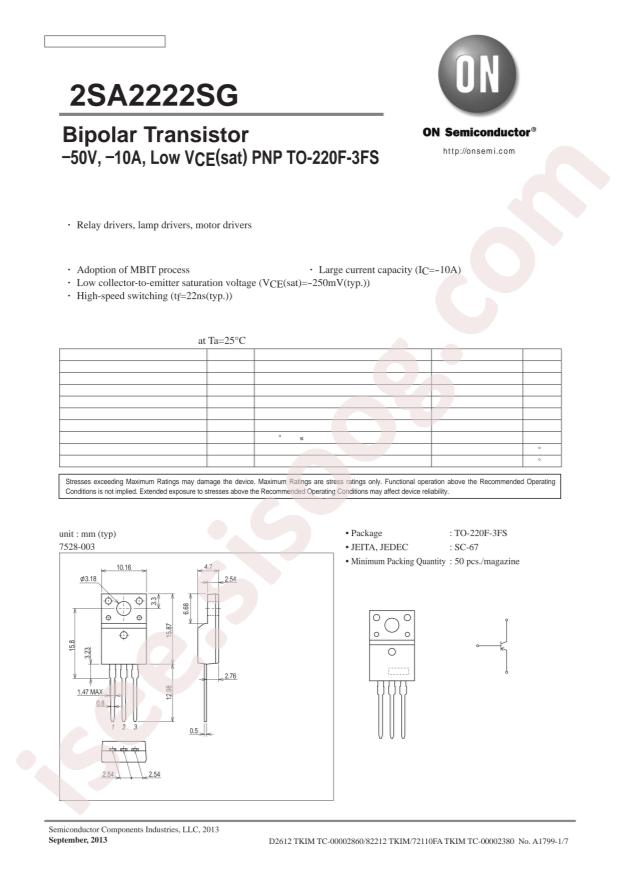

مشاهده دیتاشیت 2SA2222SG	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
Datasheet: onsemi 2SA2222SG
Transistor Type: PNP
Operating Temperature: +150°C@(Tj)
Collector Current (Ic): 10A
Power Dissipation (Pd): 25W
Transition Frequency (fT): 230MHz
DC Current Gain (hFE@Ic,Vce): 150@270mA,2V
Collector Cut-Off Current (Icbo): 10uA
Collector-Emitter Breakdown Voltage (Vceo): 50V
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 250mV@6A,300mA
Package: TO-220F-3
Manufacturer: onsemi
Series: -
Packaging: Tube
Part Status: Active
Current - Collector (Ic) (Max): 10A
Voltage - Collector Emitter Breakdown (Max): 50V
Vce Saturation (Max) @ Ib, Ic: 500mV @ 300mA, 6A
Current - Collector Cutoff (Max): 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce: 150 @ 270mA, 2V
Power - Max: 25W
Frequency - Transition: 230MHz
Mounting Type: Through Hole
Package / Case: TO-220-3 Full Pack
Supplier Device Package: TO-220ML
Base Part Number: 2SA2222
detail: Bipolar (BJT) Transistor PNP 50V 10A 230MHz 25W Through Hole TO-220ML
