دیتاشیت MJ15004G
مشخصات دیتاشیت
| نام دیتاشیت |

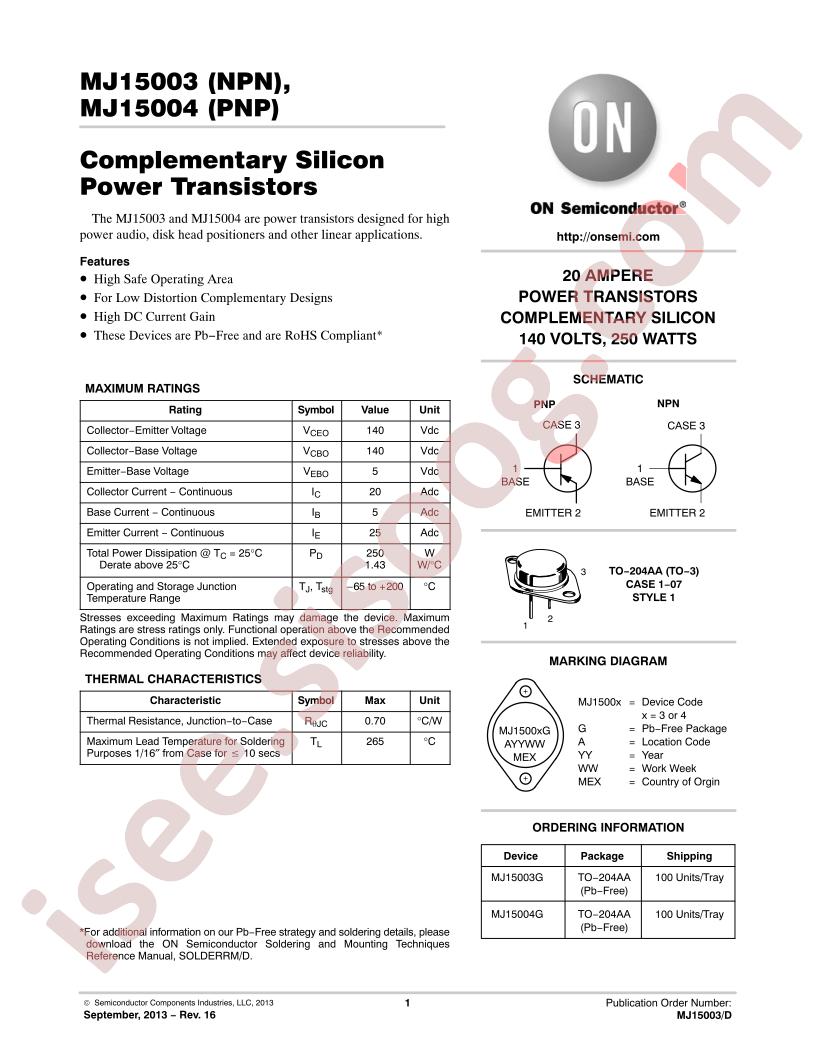

MJ15003,15004
|
| حجم فایل |
104.422
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi MJ15004G
-
Transistor Type:
PNP
-
Operating Temperature:
-65°C~+200°C@(Tj)
-
Collector Current (Ic):
20A
-
Power Dissipation (Pd):
250W
-
Transition Frequency (fT):
2MHz
-
DC Current Gain (hFE@Ic,Vce):
25@5A,2V
-
Collector Cut-Off Current (Icbo):
250uA
-
Collector-Emitter Breakdown Voltage (Vceo):
140V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
1V@5A,500mA
-
Package:
TO-204
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tray
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
20A
-
Voltage - Collector Emitter Breakdown (Max):
140V
-
Vce Saturation (Max) @ Ib, Ic:
1V @ 500mA, 5A
-
Current - Collector Cutoff (Max):
250µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
25 @ 5A, 2V
-
Power - Max:
250W
-
Frequency - Transition:
2MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-204AA, TO-3
-
Supplier Device Package:
TO-204 (TO-3)
-
Base Part Number:
MJ150
-
detail:
Bipolar (BJT) Transistor PNP 140V 20A 2MHz 250W Through Hole TO-204 (TO-3)
