UF4006 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
UF4006
|
|
حجم فایل
|
89.846
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
2
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/High Effic Rectifier
-

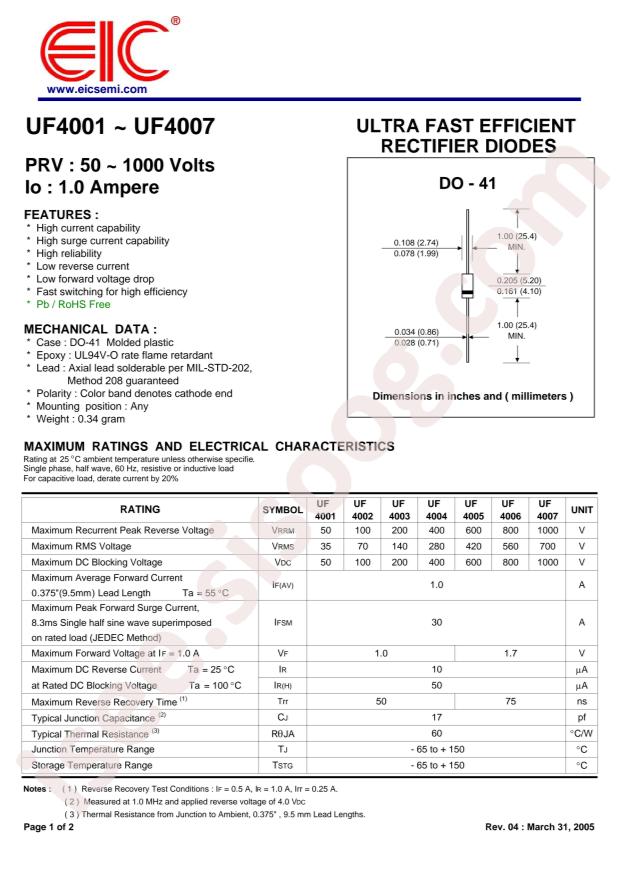

Datasheet:
EIC Semicon UF4006
-
Package:
DO-41
-
Manufacturer:
EIC Semicon
-
Diode Configuration:
-
-
Reverse Voltage (Vr):
800V
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Forward Voltage (Vf@If):
1.7V@1A
-
Reverse Leakage Current:
5uA@800V
-
Reverse Recovery Time (trr):
75ns
-
Average Rectified Current (Io):
1A
-
Reverse Leakage Current (Ir):
10uA@800V
-
Power Dissipation:
-
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
800V
-
Current - Average Rectified (Io):
1A
-
Voltage - Forward (Vf) (Max) @ If:
1.7V @ 1A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
10µA @ 800V
-
Capacitance @ Vr, F:
17pF @ 4V, 1MHz
-
Mounting Type:
Through Hole
-
Package / Case:
DO-204AL, DO-41, Axial
-
Supplier Device Package:
DO-204AL (DO-41)
-
Operating Temperature - Junction:
-65°C ~ 150°C
-
Base Part Number:
UF400
-
detail:
Diode Standard 800V 1A Through Hole DO-204AL (DO-41)
