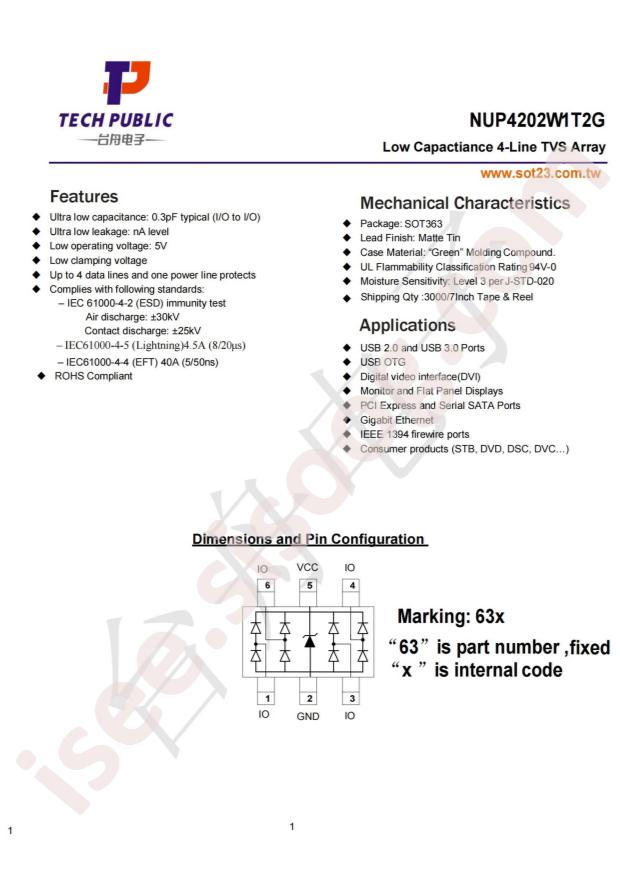

دیتاشیت NUP4202W1T2G

مشخصات دیتاشیت

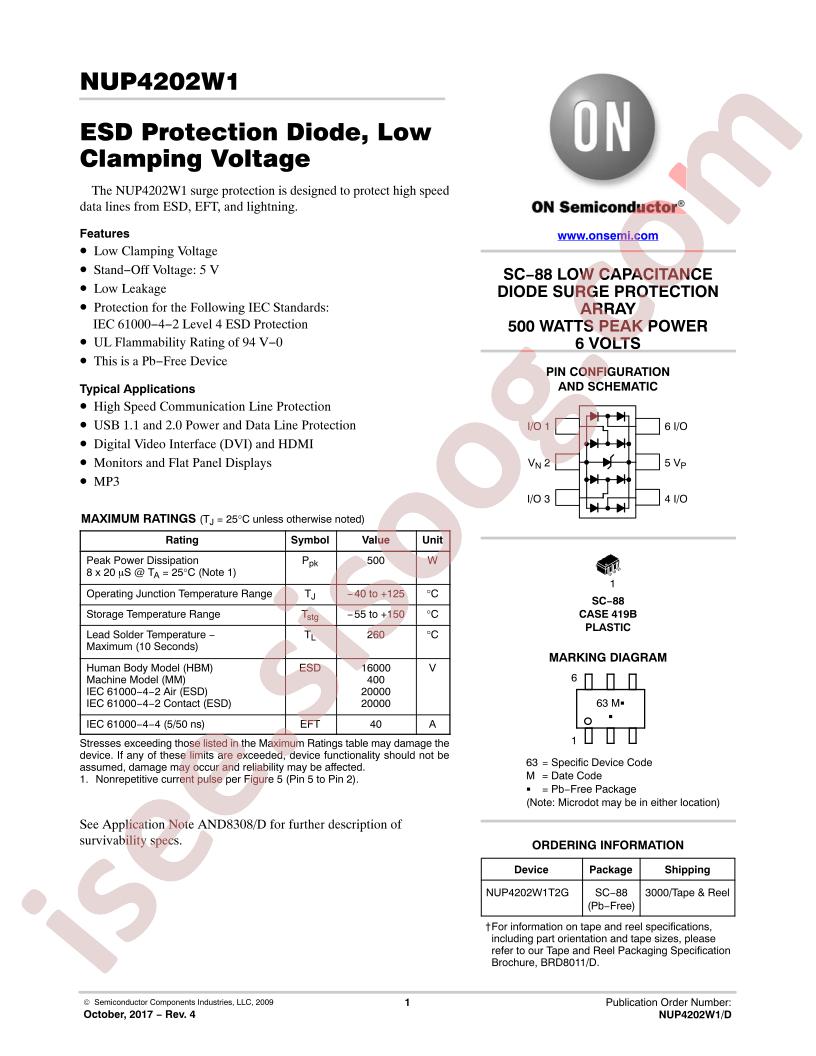

دانلود دیتاشیت NUP4202W1	NUP4202W1 Datasheet

Manufacturer: ON Semiconductor
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Type: Steering (Rail to Rail)
Unidirectional Channels: 4
Voltage - Reverse Standoff (Typ): 5V (Max)
Voltage - Breakdown (Min): 6V
Voltage - Clamping (Max) @ Ipp: 14.5V (Typ)
Current - Peak Pulse (10/1000µs): 28A (8/20µs)
Power - Peak Pulse: 500W
Power Line Protection: No
Applications: General Purpose
Capacitance @ Frequency: 3pF @ 1MHz
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 6-TSSOP, SC-88, SOT-363
Supplier Device Package: SC-88/SC70-6/SOT-363
Base Part Number: NUP4202
detail: 14.5V (Typ) Clamp 28A (8/20µs) Ipp Tvs Diode Surface Mount SC-88/SC70-6/SOT-363
