دیتاشیت NCV7719DQR2G

NCV7719

مشخصات دیتاشیت

نام دیتاشیت NCV7719
حجم فایل 236.815 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت NCV7719

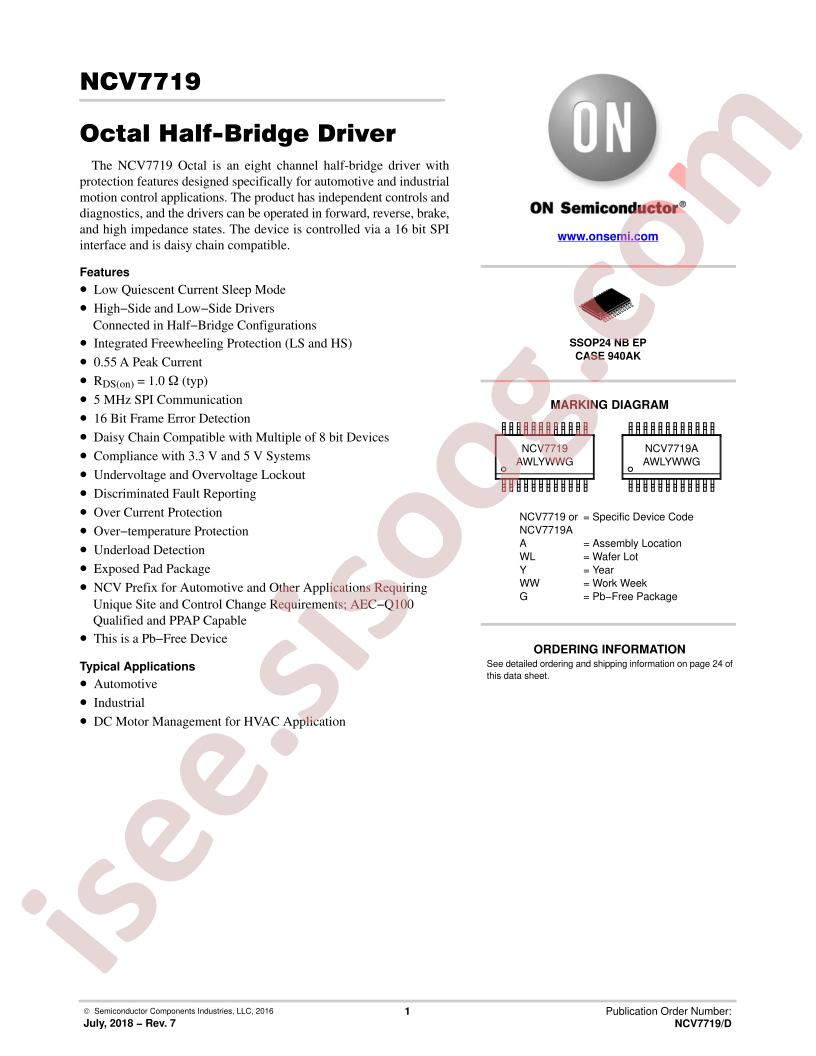

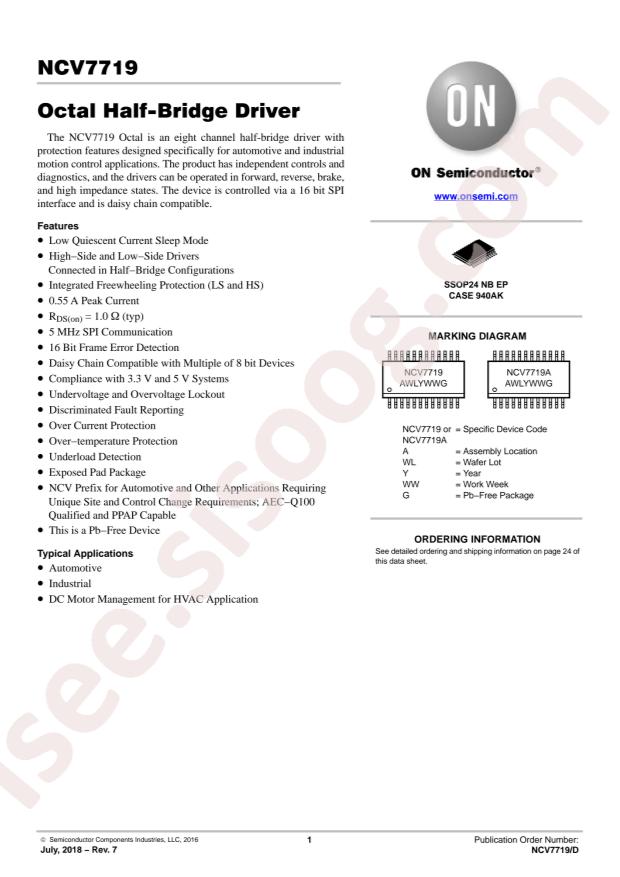

NCV7719 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi NCV7719DQR2G
  • Package: HTSSOP-24-EP-4mm
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q100
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (8)
  • Interface: SPI
  • Technology: Power MOSFET
  • Step Resolution: -
  • Applications: General Purpose
  • Current - Output: 2A
  • Voltage - Supply: 3.15V ~ 5.25V
  • Voltage - Load: 5.5V ~ 28V
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 24-LSSOP (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: 24-SSOP
  • Base Part Number: NCV7719
  • detail: Motor Driver Power MOSFET SPI 24-SSOP
