NC7SZ14M5X دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NC7SZ14M5X
|
|
حجم فایل
|
73.747
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Series:
7SZ
-
Category:
Logic ICs/Inverters
-

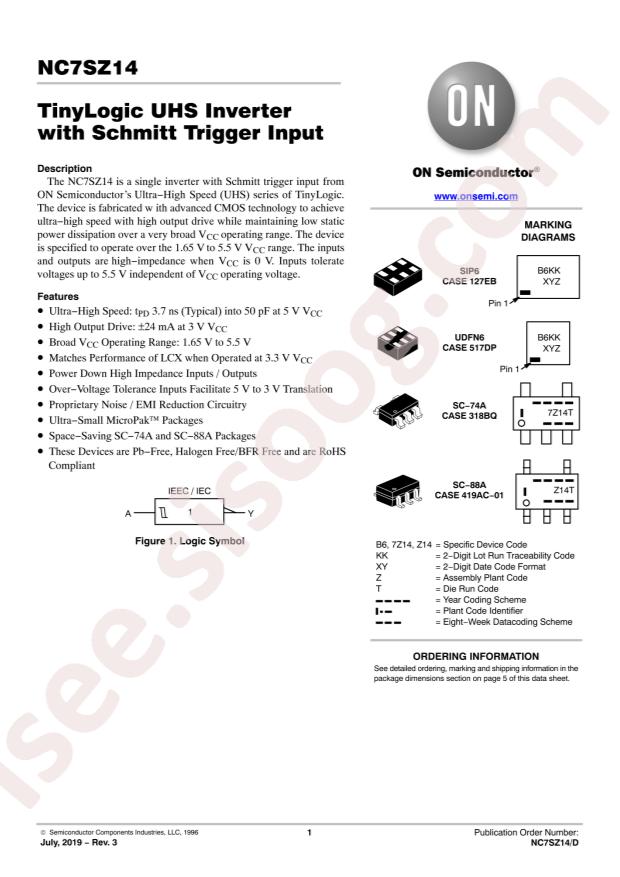

Datasheet:
onsemi NC7SZ14M5X
-
Input Type:
Schmitt Trigger
-
Sink Current:
32mA
-
Source Current:
32mA
-
Number of Inputs:
1
-
Number of Circuits:
1
-
Supply Current (Max):
1uA
-
Low level range (VIL):
0.2V~1.2V
-
Max Propagation Delay:
5.9ns@5V,50pF
-
Operating Temperature:
-40°C~+85°C
-
High level range (VIH):
1.4V~3.6V
-
Supply Voltage(Single):
1.65V~5.5V
-
Package:
SC-74A
-
Manufacturer:
onsemi
-
Packaging:
Digi-Reel®
-
Part Status:
Obsolete
-
Logic Type:
Inverter
-
Features:
Schmitt Trigger
-
Voltage - Supply:
1.65V ~ 5.5V
-
Current - Quiescent (Max):
1µA
-
Current - Output High, Low:
32mA, 32mA
-
Logic Level - Low:
0.2V ~ 1.2V
-
Logic Level - High:
1.4V ~ 3.6V
-
Max Propagation Delay @ V, Max CL:
5.9ns @ 5V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-23-5
-
Package / Case:
SC-74A, SOT-753
-
Base Part Number:
NC7SZ1
-
detail:
Inverter IC 1 Channel Schmitt Trigger SOT-23-5
