دیتاشیت ESDM3051N2T5G

ESDM3051

مشخصات دیتاشیت

نام دیتاشیت ESDM3051
حجم فایل 131.98 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت ESDM3051

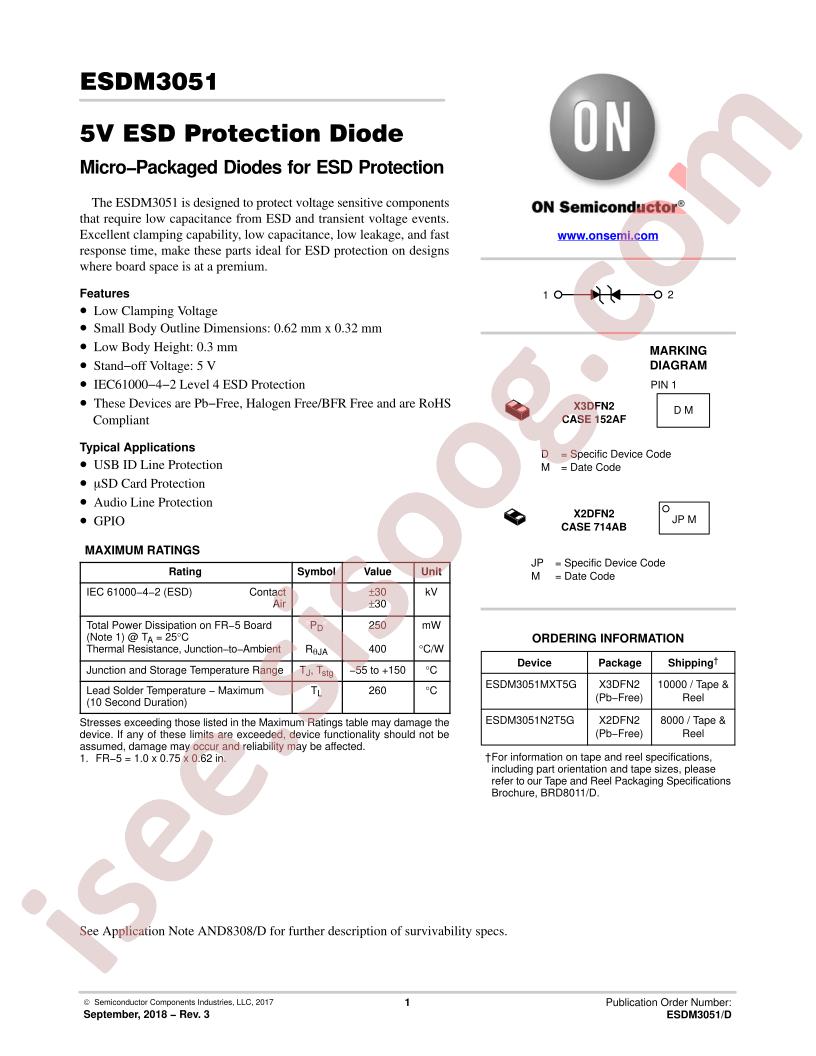

ESDM3051 Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: onsemi ESDM3051N2T5G
  • Clamping Voltage@Ipp: 8.2V
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Breakdown Voltage (VBR): 5.1V
  • Peak Pulse Power(Ppp)@8/20us: -
  • Junction Capacitance(Cj)@1MHz: 21pF@1MHz
  • Reverse Stand-Off Voltage (Vrwm): 5V
  • Package: DFN1006-2(SOD-882)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Type: Zener
  • Bidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 5V (Max)
  • Voltage - Breakdown (Min): 5.1V
  • Voltage - Clamping (Max) @ Ipp: 8.2V
  • Current - Peak Pulse (10/1000µs): 8A
  • Power - Peak Pulse: -
  • Power Line Protection: No
  • Applications: USB
  • Capacitance @ Frequency: 21pF @ 1MHz (Max)
  • Mounting Type: Surface Mount
  • Package / Case: 0402 (1006 Metric)
  • Supplier Device Package: 2-X2DFN (1x0.6)
  • Base Part Number: ESDM3
  • detail: 8.2V Clamp 8A Ipp Tvs Diode Surface Mount 2-X2DFN (1x0.6)
