دیتاشیت BAT54

BAT54

مشخصات دیتاشیت

نام دیتاشیت BAT54
حجم فایل 260.491 کیلوبایت
نوع فایل pdf
تعداد صفحات 2

دانلود دیتاشیت BAT54

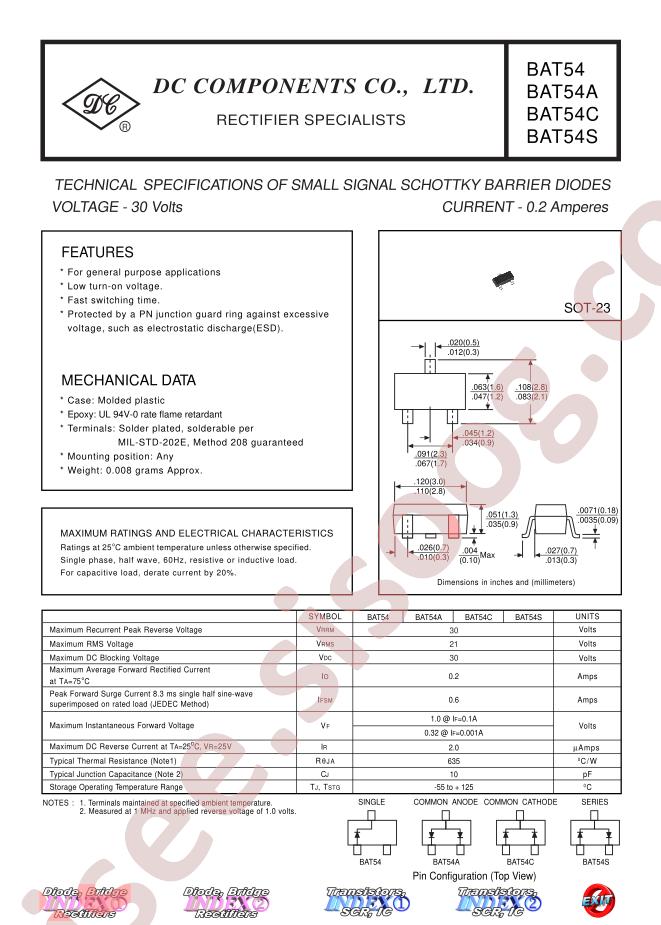

BAT54 Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: Yangzhou Yangjie Elec Tech BAT54
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 30V
  • Forward Voltage (Vf@If): 1V@100mA
  • Reverse Leakage Current (Ir): 2uA@25V
  • Average Rectified Current (Io): 200mA
  • Package: SOT-23(TO-236)
  • Manufacturer: Yangzhou Yangjie Elec Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 30V
  • Current - Average Rectified (Io): 200mA
  • Voltage - Forward (Vf) (Max) @ If: 800mV @ 100mA
  • Speed: Small Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr): 5ns
  • Current - Reverse Leakage @ Vr: 2µA @ 25V
  • Capacitance @ Vr, F: 10pF @ 1V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23-3 (TO-236)
  • Operating Temperature - Junction: -55°C ~ 150°C
  • Base Part Number: BAT54
  • detail: Diode Schottky 30V 200mA Surface Mount SOT-23-3 (TO-236)
