دیتاشیت MJL1302A
مشخصات دیتاشیت
| نام دیتاشیت | MJL3281A, 1302A |
|---|---|
| حجم فایل | 111.225 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت MJL3281A, 1302A |

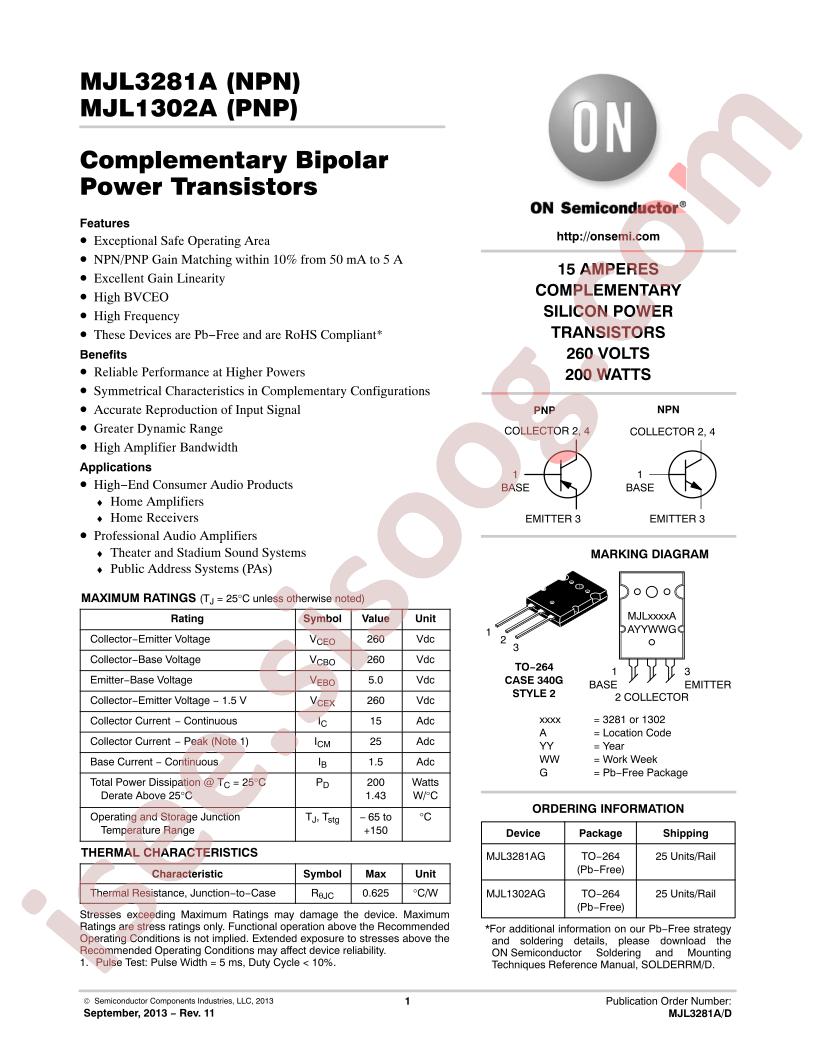

MJL3281A, 1302A Datasheet |
|---|
مشخصات
- Manufacturer: ON Semiconductor
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Transistor Type: PNP
- Current - Collector (Ic) (Max): 15A
- Voltage - Collector Emitter Breakdown (Max): 260V
- Vce Saturation (Max) @ Ib, Ic: 3V @ 1A, 10A
- Current - Collector Cutoff (Max): 50µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 75 @ 5A, 5V
- Power - Max: 200W
- Frequency - Transition: 30MHz
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Through Hole

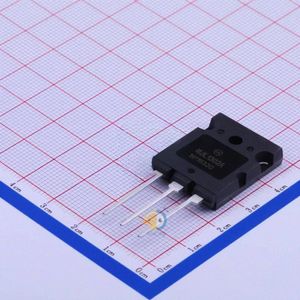

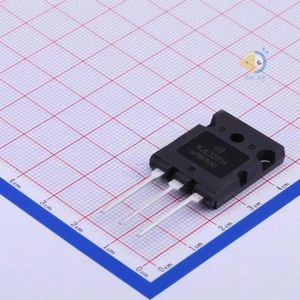

- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264
- Base Part Number: MJL13
