دیتاشیت MPS3563
مشخصات دیتاشیت
| نام دیتاشیت | MPS918, MPS3563 |
|---|---|
| حجم فایل | 47.607 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 3 |
دانلود دیتاشیت MPS918, MPS3563 |

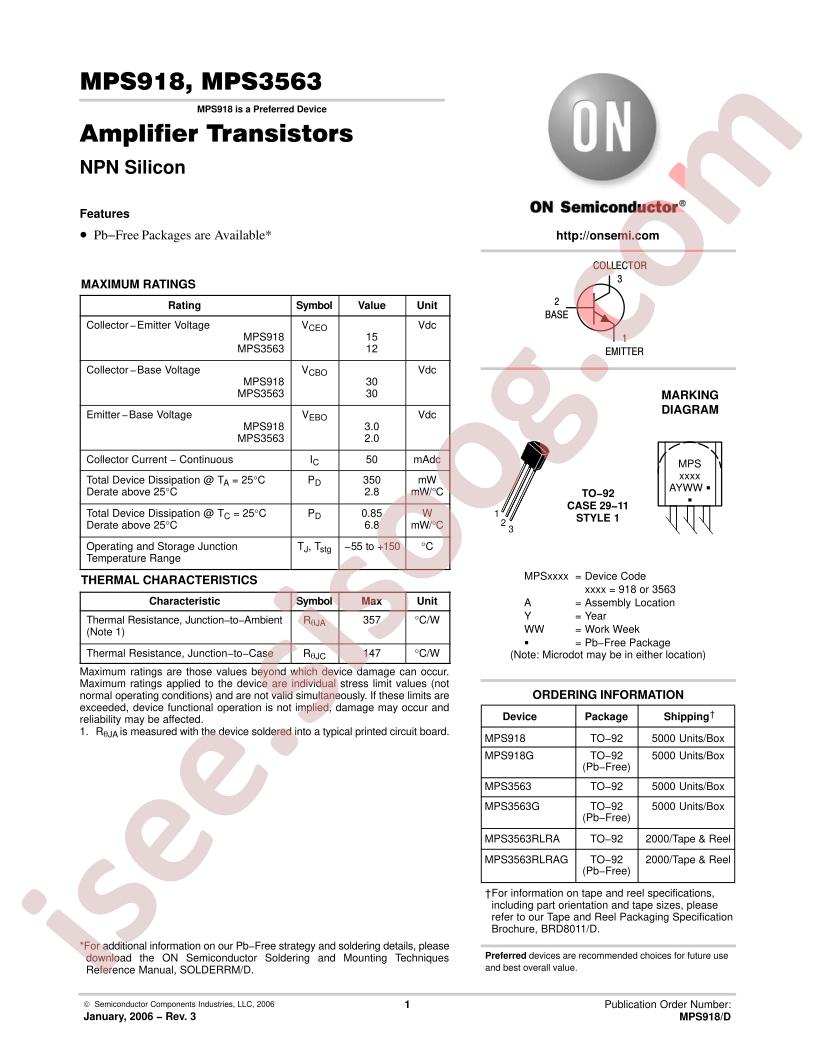

MPS918, MPS3563 Datasheet |
|---|
مشخصات
- Manufacturer: ON Semiconductor
- Series: -
- Packaging: Bulk
- Part Status: Obsolete
- Transistor Type: NPN
- Voltage - Collector Emitter Breakdown (Max): 12V
- Frequency - Transition: 1.5GHz
- Noise Figure (dB Typ @ f): 6.5dB @ 60MHz
- Gain: 14dB @ 200MHz
- Power - Max: 350W
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 8mA, 10V
- Current - Collector (Ic) (Max): 50mA
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package: TO-92
- Base Part Number: MPS356
- detail: RF Transistor NPN 12V 50mA 1.5GHz 350W Through Hole TO-92
