دیتاشیت NTD25P03LT4

NTD25P03L

مشخصات دیتاشیت

نام دیتاشیت NTD25P03L
حجم فایل 145.713 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت NTD25P03L

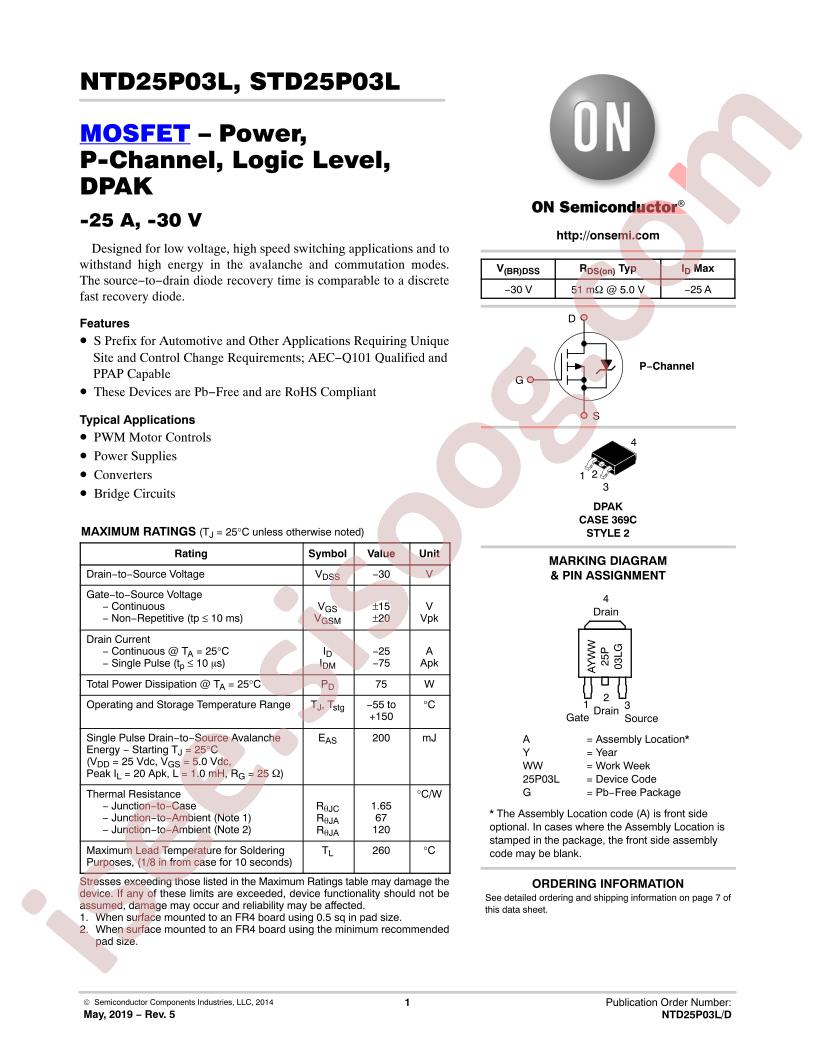

NTD25P03L Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 25A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4V, 5V
  • Rds On (Max) @ Id, Vgs: 80mOhm @ 25A, 5V
  • Vgs(th) (Max) @ Id: 2V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 20nC @ 5V
  • Vgs (Max): ±15V
  • Input Capacitance (Ciss) (Max) @ Vds: 1260pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 75W (Tj)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: NTD25
  • detail: P-Channel 30V 25A (Ta) 75W (Tj) Surface Mount DPAK
