دیتاشیت TIP125
مشخصات دیتاشیت
| نام دیتاشیت | TIP120-22, TIP125-27 |
|---|---|
| حجم فایل | 141.628 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت TIP120-22, TIP125-27 |

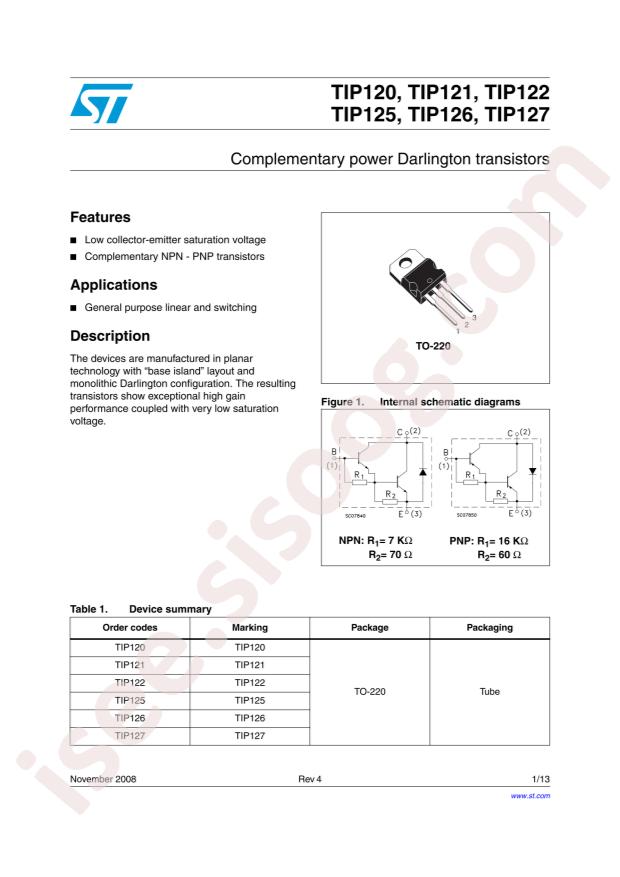

TIP120-22, TIP125-27 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Darlington Transistors
- Package: TO-220
- Manufacturer: SPTECH
- Series: -
- Packaging: Bulk
- Part Status: Obsolete
- Transistor Type: PNP - Darlington
- Current - Collector (Ic) (Max): 5A
- Voltage - Collector Emitter Breakdown (Max): 60V
- Vce Saturation (Max) @ Ib, Ic: 4V @ 20mA, 5A
- Current - Collector Cutoff (Max): 2mA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 1000 @ 3A, 3V
- Power - Max: 2W
- Frequency - Transition: -
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220-3
- Base Part Number: TIP125
