دیتاشیت MUR260

MUR260

مشخصات دیتاشیت

نام دیتاشیت MUR260
حجم فایل 60.137 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت MUR260

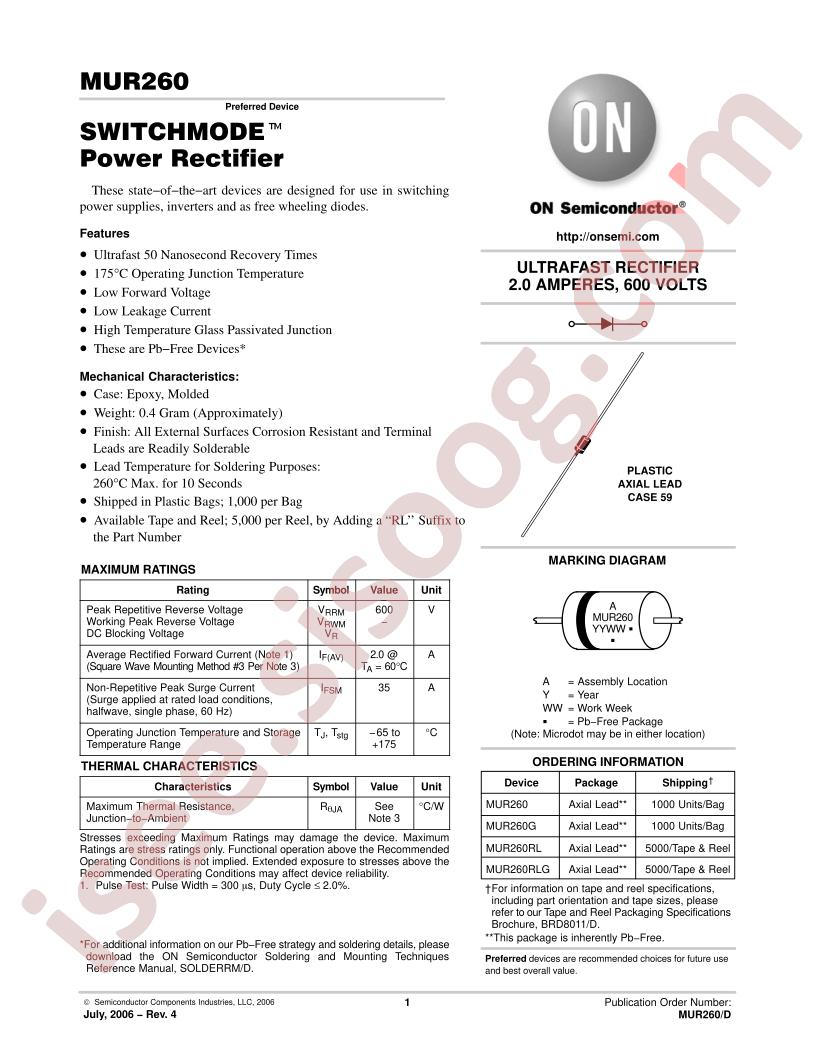

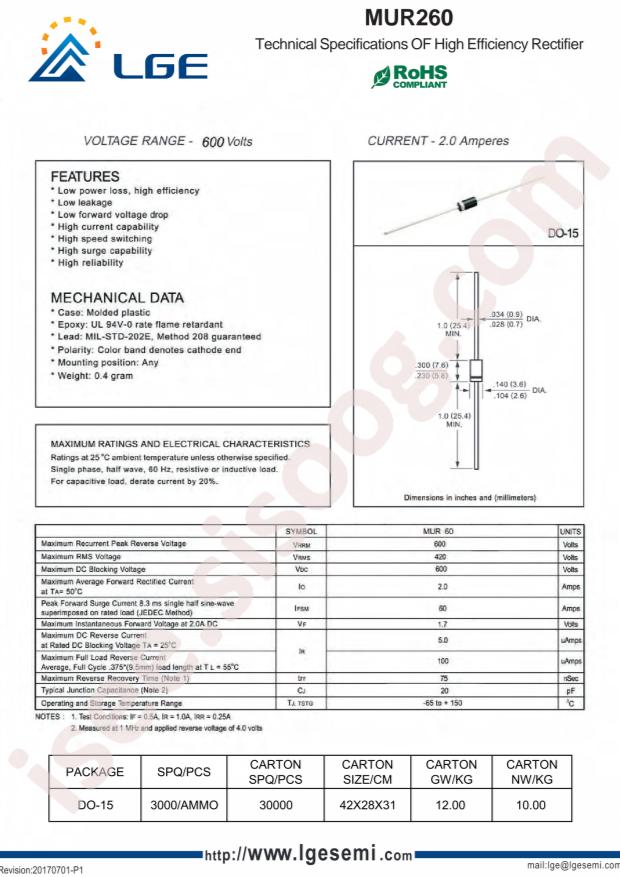

MUR260 Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Diodes - Fast Recovery Rectifiers
  • Datasheet: Yangzhou Yangjie Elec Tech MUR260
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 600V
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Forward Voltage (Vf@If): 1.25V@2A
  • Reverse Leakage Current: 5uA@400V
  • Reverse Recovery Time (trr): 50ns
  • Average Rectified Current (Io): 2A
  • Package: DO-15
  • Manufacturer: Yangzhou Yangjie Elec Tech
  • Series: SWITCHMODE™
  • Packaging: Bulk
  • Part Status: Obsolete
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 600V
  • Current - Average Rectified (Io): 2A
  • Voltage - Forward (Vf) (Max) @ If: 1.35V @ 2A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 5µA @ 600V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: DO-204AL, DO-41, Axial
  • Supplier Device Package: Axial
  • Operating Temperature - Junction: -65°C ~ 175°C
  • Base Part Number: MUR26
