دیتاشیت BAR43C

BAR43C

مشخصات دیتاشیت

نام دیتاشیت BAR43C
حجم فایل 80.045 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

دانلود دیتاشیت BAR43C

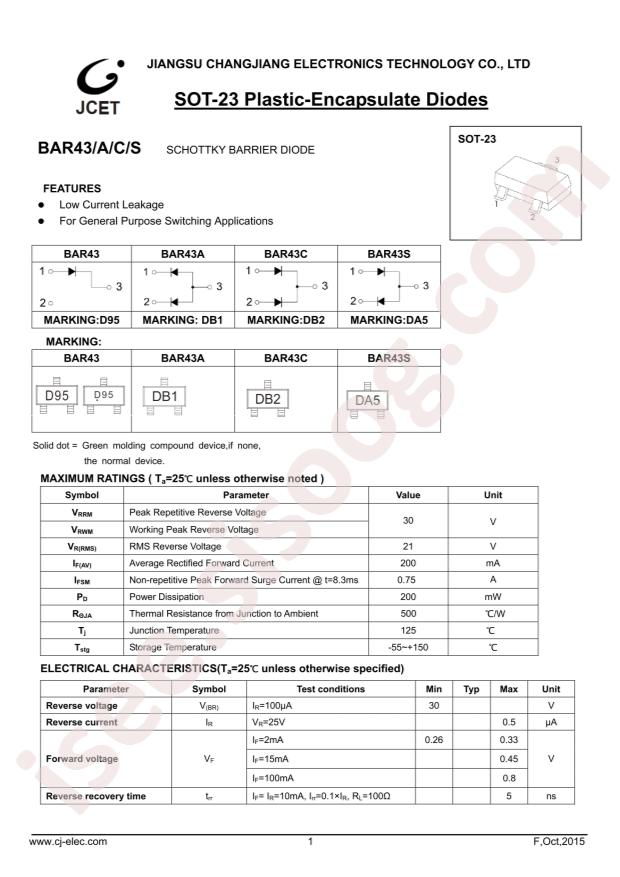

BAR43C Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: Jiangsu Changjing Electronics Technology Co., Ltd. BAR43C
  • Diode Configuration: Dual Common Cathode
  • Reverse Voltage (Vr): 30V
  • Forward Voltage (Vf@If): 800mV@100mA
  • Reverse Leakage Current (Ir): 500nA@25V
  • Average Rectified Current (Io): 200mA
  • Package: SOT-23-3
  • Manufacturer: Jiangsu Changjing Electronics Technology Co., Ltd.
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 30V
  • Current - Average Rectified (Io) (per Diode): 200mA
  • Voltage - Forward (Vf) (Max) @ If: 800mV @ 100mA
  • Speed: Small Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr): 5ns
  • Current - Reverse Leakage @ Vr: 500nA @ 25V
  • Operating Temperature - Junction: 150°C (Max)
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23-3 (TO-236)
  • Base Part Number: BAR43
