دیتاشیت PZT3906
مشخصات دیتاشیت
| نام دیتاشیت | 2N3906, MMBT3906, PZT3906 |
|---|---|
| حجم فایل | 515.535 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 11 |
دانلود دیتاشیت 2N3906, MMBT3906, PZT3906 |

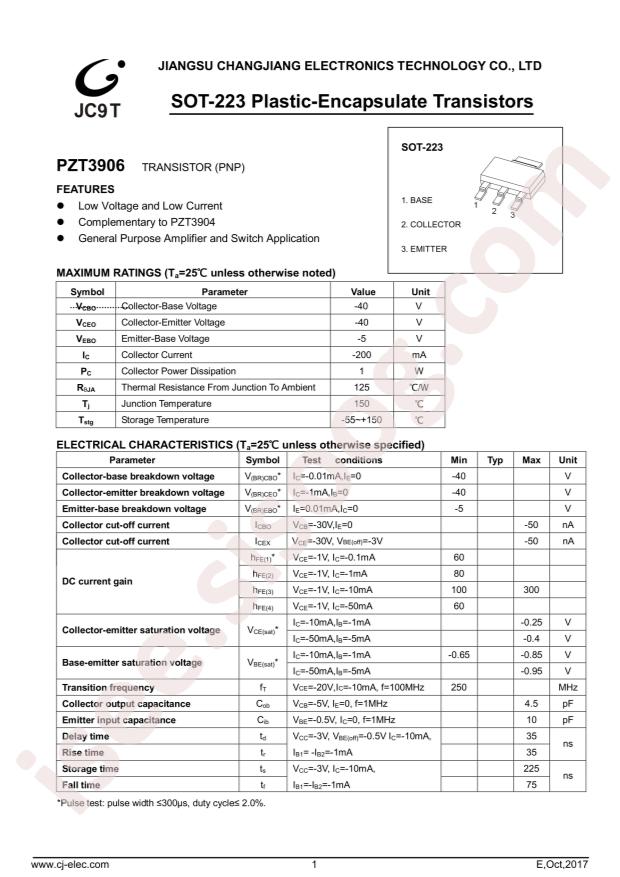

2N3906, MMBT3906, PZT3906 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: Jiangsu Changjing Electronics Technology Co., Ltd. PZT3906
- Transistor Type: PNP
- Collector Current (Ic): 200mA
- Power Dissipation (Pd): 1W
- Collector-Emitter Breakdown Voltage (Vceo): 40V
- Package: SOT-223
- Manufacturer: Jiangsu Changjing Electronics Technology Co., Ltd.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Current - Collector (Ic) (Max): 200mA
- Voltage - Collector Emitter Breakdown (Max): 40V
- Vce Saturation (Max) @ Ib, Ic: 400mV @ 5mA, 50mA
- Current - Collector Cutoff (Max): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 1V
- Power - Max: 1W
- Frequency - Transition: 250MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-261-4, TO-261AA
- Supplier Device Package: SOT-223-4
- Base Part Number: PZT390
