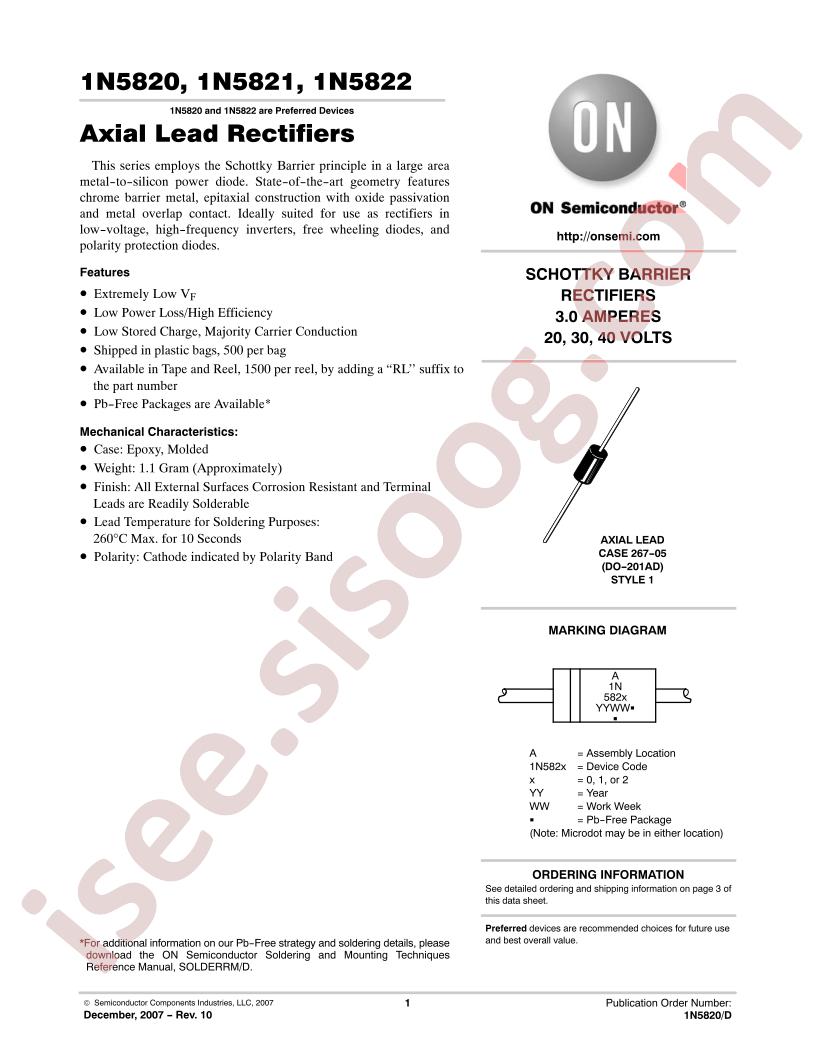

1N5820 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
1N5820
|
|
حجم فایل
|
403.913
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
2
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Last Time Buy
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
20V
-
Current - Average Rectified (Io):
3A
-
Voltage - Forward (Vf) (Max) @ If:
475mV @ 3A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
500µA @ 20V
-
Capacitance @ Vr, F:
190pF @ 4V, 1MHz
-
Mounting Type:
Through Hole
-
Package / Case:
DO-201AD, Axial
-
Supplier Device Package:
DO-201AD
-
Operating Temperature - Junction:
-65°C ~ 125°C
-
Base Part Number:
1N5820
-
detail:
Diode Schottky 20V 3A Through Hole DO-201AD
