دیتاشیت 74VHC14SJX

74VHC14

مشخصات دیتاشیت

نام دیتاشیت 74VHC14
حجم فایل 920.836 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت 74VHC14

74VHC14 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: 74VHC
  • Packaging: Cut Tape (CT)
  • Part Status: Last Time Buy
  • Logic Type: Inverter
  • Number of Circuits: 6
  • Number of Inputs: 6
  • Features: Schmitt Trigger
  • Voltage - Supply: 2V ~ 5.5V
  • Current - Quiescent (Max): 2µA
  • Current - Output High, Low: 8mA, 8mA
  • Logic Level - Low: 0.9V ~ 1.65V
  • Logic Level - High: 2.2V ~ 3.85V
  • Max Propagation Delay @ V, Max CL: 10.6ns @ 5V, 50pF
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-SOP
  • Package / Case: 14-SOIC (0.209", 5.30mm Width)
  • Base Part Number: 74VHC14

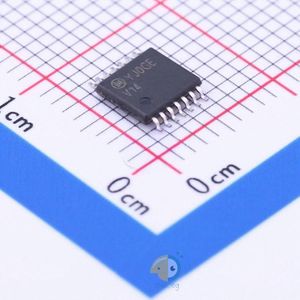

  • detail: Inverter IC 6 Channel Schmitt Trigger 14-SOP
