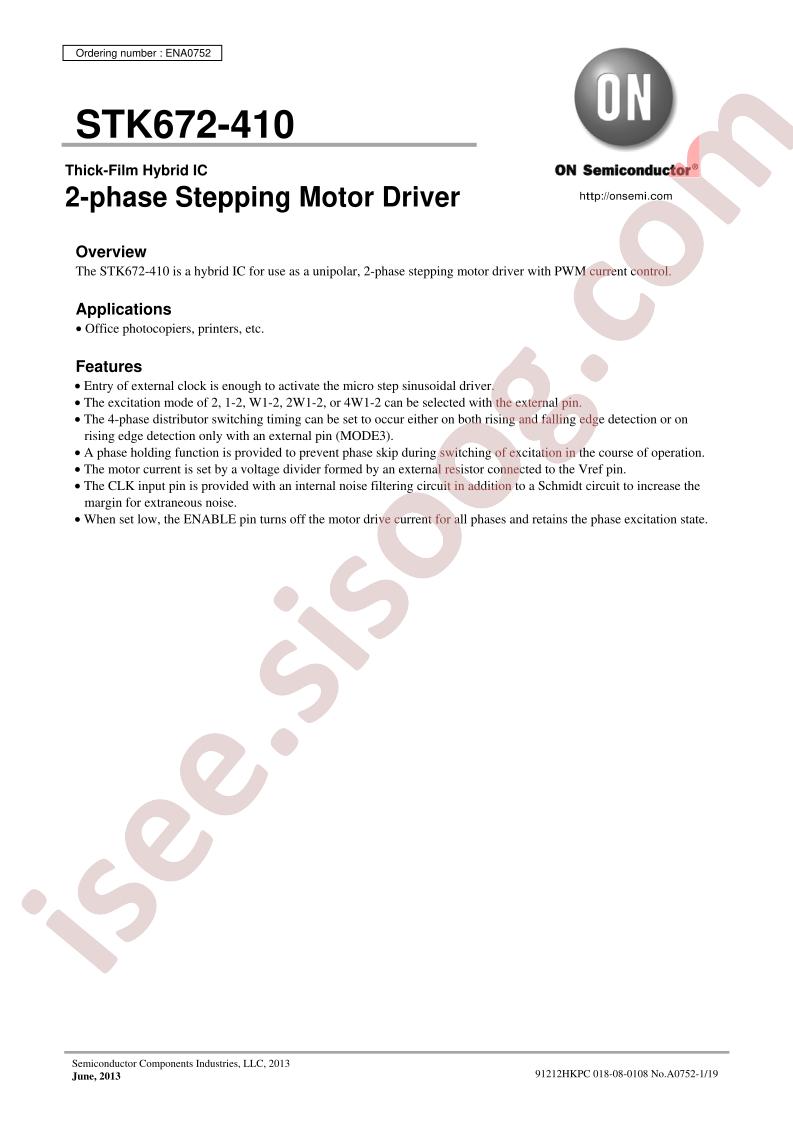

STK672-410 Datasheet
Datasheet specifications
| Datasheet's name | STK672-410 |
|---|---|
| File size | 132.113 KB |
| File type | |
| Number of pages | 19 |
Download Datasheet STK672-410 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: ON Semiconductor
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Motor Type - Stepper: Unipolar
- Motor Type - AC, DC: -
- Function: Driver - Fully Integrated, Control and Power Stage
- Output Configuration: Half Bridge (2)
- Interface: Parallel
- Technology: Power MOSFET
- Step Resolution: 1, 1/2, 1/4, 1/8, 1/16
- Applications: General Purpose
- Current - Output: 3A
- Voltage - Supply: 4.75V ~ 5.25V
- Voltage - Load: 10V ~ 45V
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 19-SSIP Formed Leads
- Supplier Device Package: 19-SIP
- Base Part Number: STK672
- detail: Unipolar Motor Driver Power MOSFET Parallel 19-SIP
