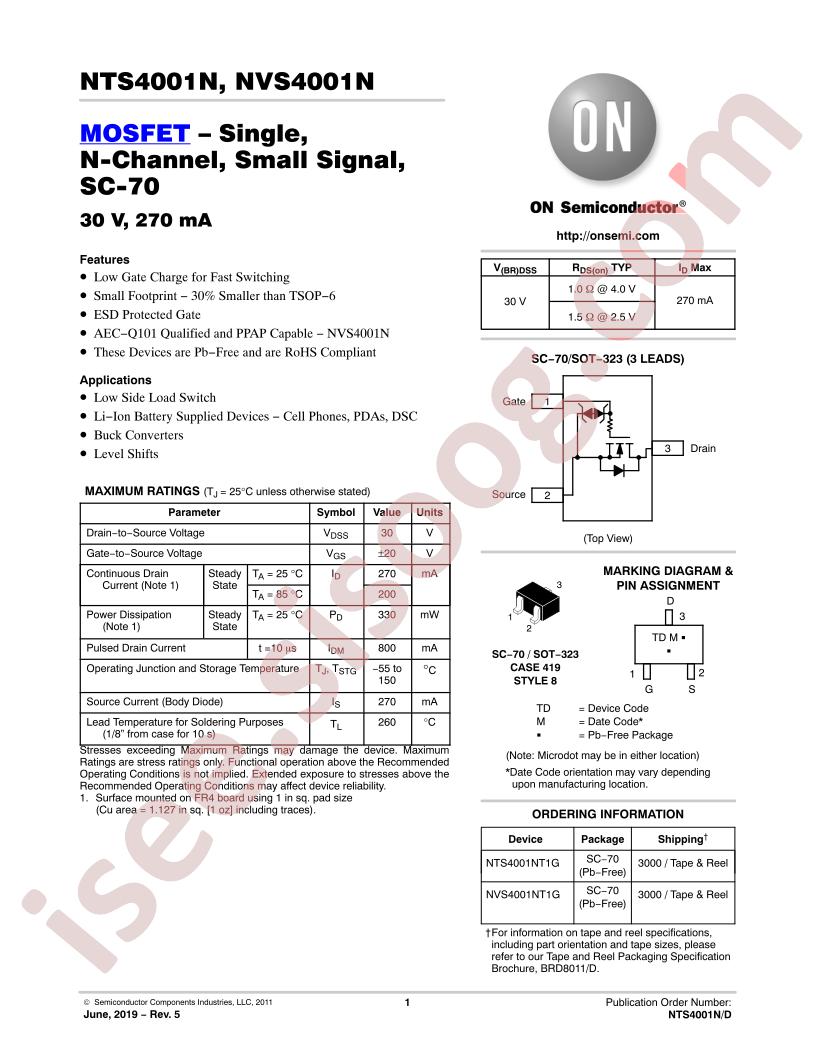

دیتاشیت NTS4001NT1G
مشخصات دیتاشیت
| نام دیتاشیت |
NTS4001N
|
| حجم فایل |
116.136
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTS4001NT1G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
330mW
-
Total Gate Charge (Qg@Vgs):
1.3nC@5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
33pF@5V
-
Continuous Drain Current (Id):
270mA
-
Gate Threshold Voltage (Vgs(th)@Id):
1.5V@100uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.5Ω@4V,10mA
-
Package:
SOT-323(SC-70)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
270mA (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 4V
-
Rds On (Max) @ Id, Vgs:
1.5Ohm @ 10mA, 4V
-
Vgs(th) (Max) @ Id:
1.5V @ 100µA
-
Gate Charge (Qg) (Max) @ Vgs:
1.3nC @ 5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
33pF @ 5V
-
FET Feature:
-
-
Power Dissipation (Max):
330mW (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SC-70-3 (SOT323)
-
Package / Case:
SC-70, SOT-323
-
Base Part Number:
NTS400
-
detail:
N-Channel 30V 270mA (Ta) 330mW (Ta) Surface Mount SC-70-3 (SOT323)
