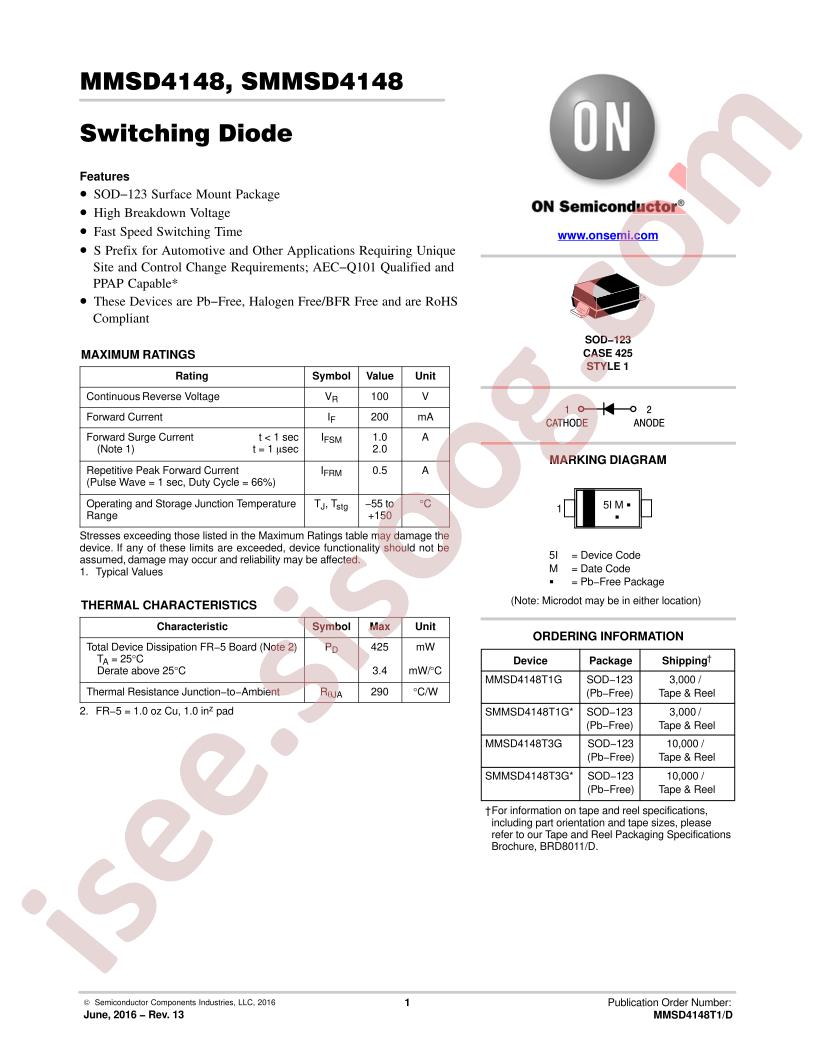

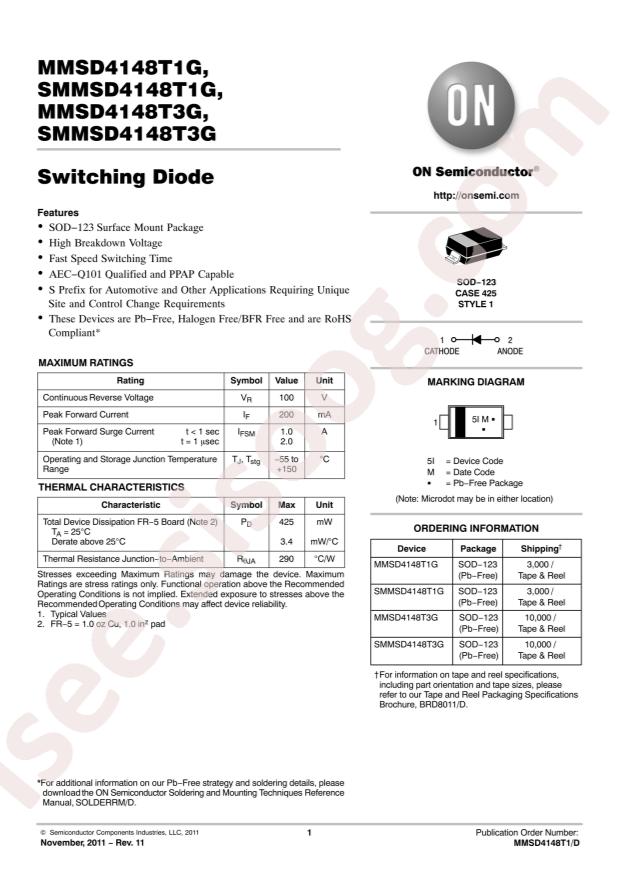

دیتاشیت MMSD4148T1G
مشخصات دیتاشیت
| نام دیتاشیت |
MMSD4148T(1,3)
|
| حجم فایل |
57.899
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Switching Diode
-
Datasheet:
onsemi MMSD4148T1G
-
Power Dissipation:
425mW
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
100V
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Forward Voltage (Vf@If):
1V@10mA
-
Reverse Leakage Current:
5uA@75V
-
Reverse Recovery Time (trr):
4ns
-
Average Rectified Current (Io):
200mA
-
Package:
SOD-123
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
100V
-
Current - Average Rectified (Io):
200mA (DC)
-
Voltage - Forward (Vf) (Max) @ If:
1V @ 10mA
-
Speed:
Small Signal =< 200mA (Io), Any Speed
-
Current - Reverse Leakage @ Vr:
5µA @ 75V
-
Capacitance @ Vr, F:
4pF @ 0V, 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
SOD-123
-
Supplier Device Package:
SOD-123
-
Operating Temperature - Junction:
-55°C ~ 150°C
-
Base Part Number:
MMSD41
-
detail:
Diode Standard 100V 200mA (DC) Surface Mount SOD-123
