دیتاشیت MMBTA42LT1G
مشخصات دیتاشیت
| نام دیتاشیت | MMBT,SMMBTA(42,43)L |
|---|---|
| حجم فایل | 124.553 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت MMBT,SMMBTA(42,43)L |
MMBT,SMMBTA(42,43)L Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: onsemi MMBTA42LT1G
- Transistor Type: NPN
- Operating Temperature: -55°C~+150°C@(Tj)
- Collector Current (Ic): 500mA
- Power Dissipation (Pd): 225mW
- Transition Frequency (fT): 50MHz
- DC Current Gain (hFE@Ic,Vce): 40@30mA,10V
- Collector Cut-Off Current (Icbo): 100nA
- Collector-Emitter Breakdown Voltage (Vceo): 300V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 500mV@20mA,2mA

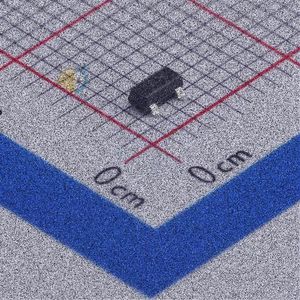

- Package: SOT-23(TO-236)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Current - Collector (Ic) (Max): 500mA
- Voltage - Collector Emitter Breakdown (Max): 300V
- Vce Saturation (Max) @ Ib, Ic: 500mV @ 2mA, 20mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 40 @ 30mA, 10V
- Power - Max: 225mW
- Frequency - Transition: 50MHz
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
- Base Part Number: MMBTA42
