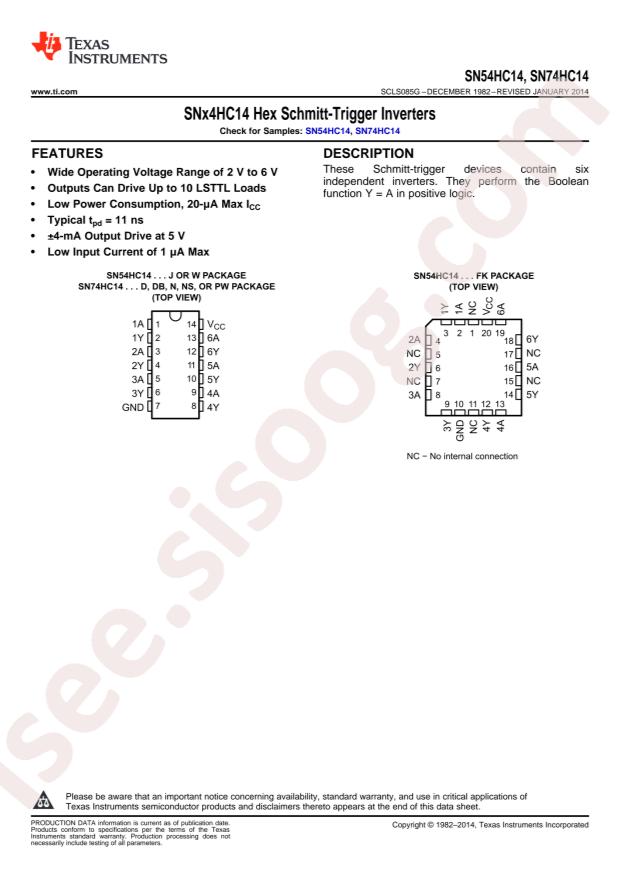

SN74HC14PWR Datasheet
Datasheet specifications
|
Datasheet's name
|
SN74HC14PWR
|
|
File size
|
52.865
KB
|
|
File type
|
pdf
|
|
Number of pages
|
22
|
Technical specifications
-
RoHS:
true
-
Series:
74HC
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments SN74HC14PWR
-
Input Type:
Schmitt Trigger
-
Sink Current:
5.2mA
-
Source Current:
5.2mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Supply Current (Max):
2uA
-
Low level range (VIL):
0.3V~1.2V
-
Max Propagation Delay:
21ns@6V,50pF
-
Operating Temperature:
-40°C~+85°C
-
High level range (VIH):
1.5V~4.2V
-
Supply Voltage(Single):
2V~6V
-
Package:
TSSOP-14
-
Manufacturer:
Texas Instruments
-
Mounting Type:
Surface Mount
-
Logic Type:
Inverter
-
Current - Output High, Low:
5.2mA, 5.2mA
-
Supplier Device Package:
14-TSSOP
-
Logic Level - High:
1.5V ~ 4.2V
-
Logic Level - Low:
0.3V ~ 1.2V
-
Voltage - Supply:
2V ~ 6V
-
Base Part Number:
SN74HC1
-
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
-
Part Status:
Active
-
Features:
Schmitt Trigger
-
Max Propagation Delay @ V, Max CL:
21ns @ 6V, 50pF
-
Packaging:
Cut Tape (CT)
-
Current - Quiescent (Max):
2µA
-
detail:
Inverter IC 6 Channel Schmitt Trigger 14-TSSOP
