دیتاشیت SN74LVC2G08DCTR

SN74LVC2G08

مشخصات دیتاشیت

نام دیتاشیت SN74LVC2G08
حجم فایل 1073.33 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت SN74LVC2G08

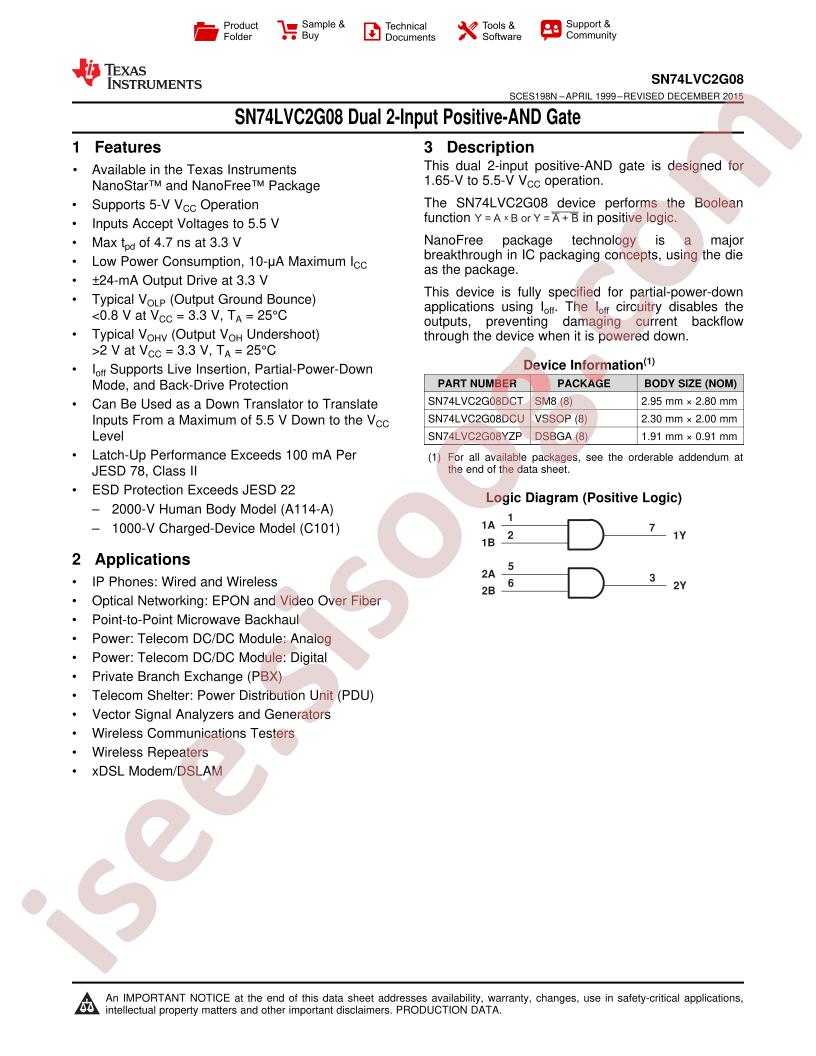

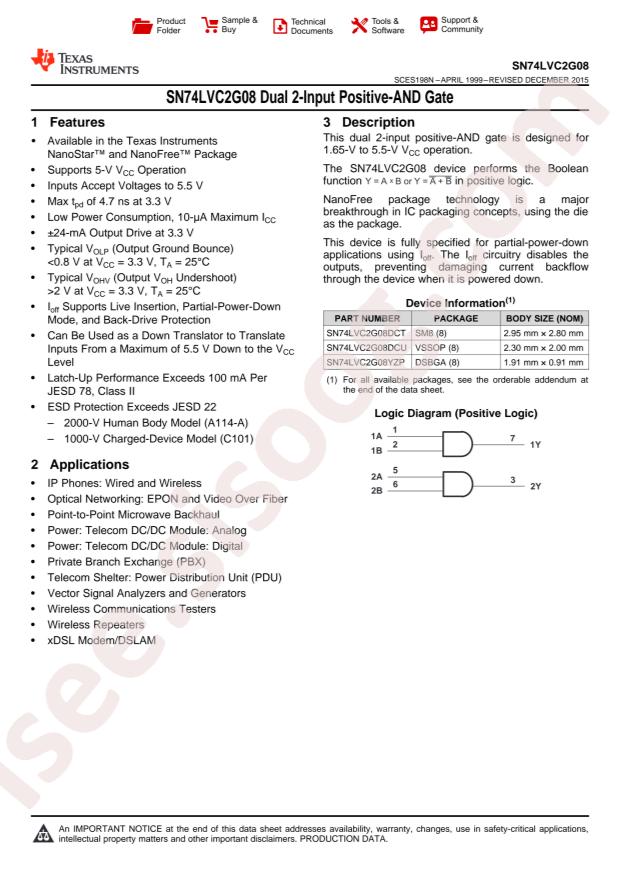

SN74LVC2G08 Datasheet

مشخصات

  • RoHS: true
  • Series: -
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74LVC2G08DCTR
  • Logic Gate Type: -
  • Package: TSSOP-8-3mm
  • Manufacturer: Texas Instruments
  • Packaging: Cut Tape (CT)
  • Max Propagation Delay @ V, Max CL: 3.8ns @ 5V, 50pF
  • Package / Case: 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
  • Operating Temperature: -40°C ~ 125°C
  • Voltage - Supply: 1.65V ~ 5.5V
  • Base Part Number: SN74LVC2G
  • Logic Level - Low: 0.7V ~ 0.8V
  • Mounting Type: Surface Mount
  • Supplier Device Package: SM8 (SSOP)
  • Current - Quiescent (Max): 10µA
  • Logic Level - High: 1.7V ~ 2V
  • Logic Type: AND Gate
  • Number of Circuits: 2
  • Features: -
  • Current - Output High, Low: 32mA, 32mA
  • Part Status: Active
  • Number of Inputs: 2
  • detail: AND Gate IC 2 Channel SM8 (SSOP)
