دیتاشیت CD74HC4051PWR

CDx4HC405x, CDx4HCT405x

مشخصات دیتاشیت

نام دیتاشیت CDx4HC405x, CDx4HCT405x
حجم فایل 1604.266 کیلوبایت
نوع فایل pdf
تعداد صفحات 45

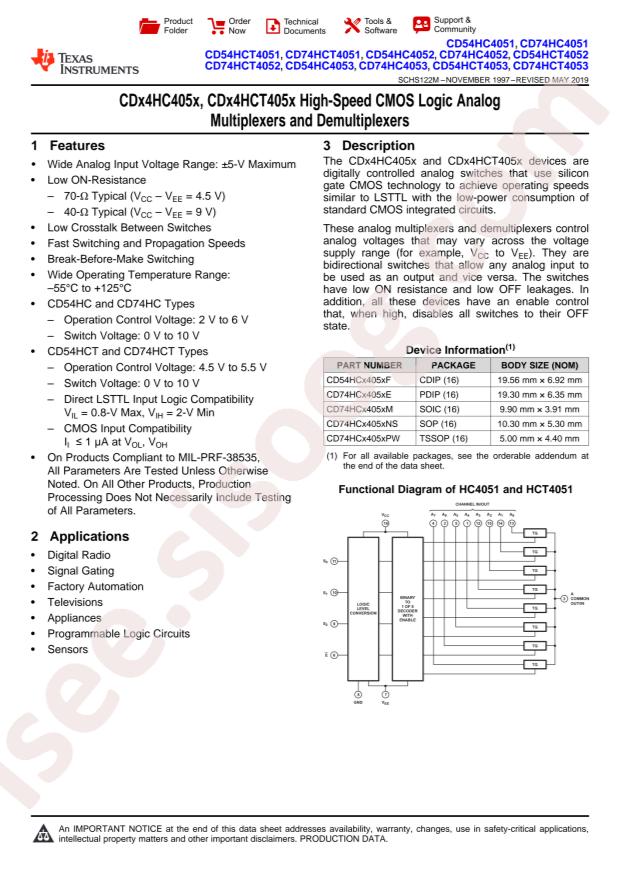

دانلود دیتاشیت CDx4HC405x, CDx4HCT405x

CDx4HC405x, CDx4HCT405x Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
  • Datasheet: Texas Instruments CD74HC4051PWR
  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Series: -
  • Switch Time (Ton, Toff) (Max): -
  • Supplier Device Package: 16-TSSOP
  • Channel Capacitance (CS(off), CD(off)): 25pF
  • Number of Circuits: 1
  • Channel-to-Channel Matching (ΔRon): 8.5Ohm
  • -3db Bandwidth: 180MHz
  • Charge Injection: -
  • Multiplexer/Demultiplexer Circuit: 8:1
  • Packaging: Cut Tape (CT)
  • Voltage - Supply, Single (V+): 2V ~ 6V
  • Voltage - Supply, Dual (V±): ±1V ~ 5V
  • Base Part Number: 74HC4051
  • On-State Resistance (Max): 130Ohm
  • Operating Temperature: -55°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Current - Leakage (IS(off)) (Max): 400nA
  • Crosstalk: -
  • Part Status: Active
  • Switch Circuit: -
  • detail: 1 Circuit IC Switch 8:1 130Ohm 16-TSSOP
