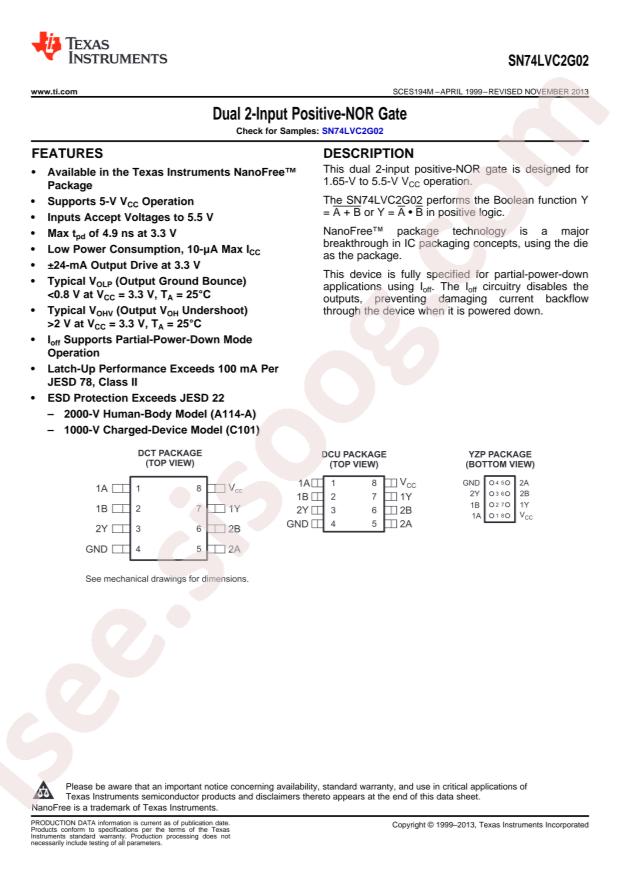

SN74LVC2G02DCTR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74LVC2G02DCTR
|
|
حجم فایل
|
74.497
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
18
|
مشخصات فنی
-
RoHS:
true
-
Series:
74LVC
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74LVC2G02DCTR
-
Sink Current:
32mA
-
Source Current:
32mA
-
Supply Voltage:
1.65V~5.5V
-
Logic Gate Type:
NORGate
-
Number of Channels:
2
-
Low Level Range (VIL):
0.7V~0.8V
-
Operating Temperature:
-40°C~+125°C
-
High Level Range (VIH):
1.7V~2V
-
Propagation Delay Time:
4.4ns@5V,50pF
-
Quiescent Current (Max):
10uA
-
Package:
MSOP-8
-
Manufacturer:
Texas Instruments
-
Supplier Device Package:
SM8 (SSOP)
-
Base Part Number:
SN74LVC2G
-
Logic Type:
NOR Gate
-
Number of Circuits:
2
-
Packaging:
Cut Tape (CT)
-
Number of Inputs:
2
-
Current - Output High, Low:
32mA, 32mA
-
Max Propagation Delay @ V, Max CL:
4.4ns @ 5V, 50pF
-
Features:
-
-
Logic Level - High:
1.7V ~ 2V
-
Package / Case:
8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
-
Current - Quiescent (Max):
10µA
-
Mounting Type:
Surface Mount
-
Part Status:
Active
-
Voltage - Supply:
1.65V ~ 5.5V
-
Logic Level - Low:
0.7V ~ 0.8V
-
detail:
NOR Gate IC 2 Channel SM8 (SSOP)
