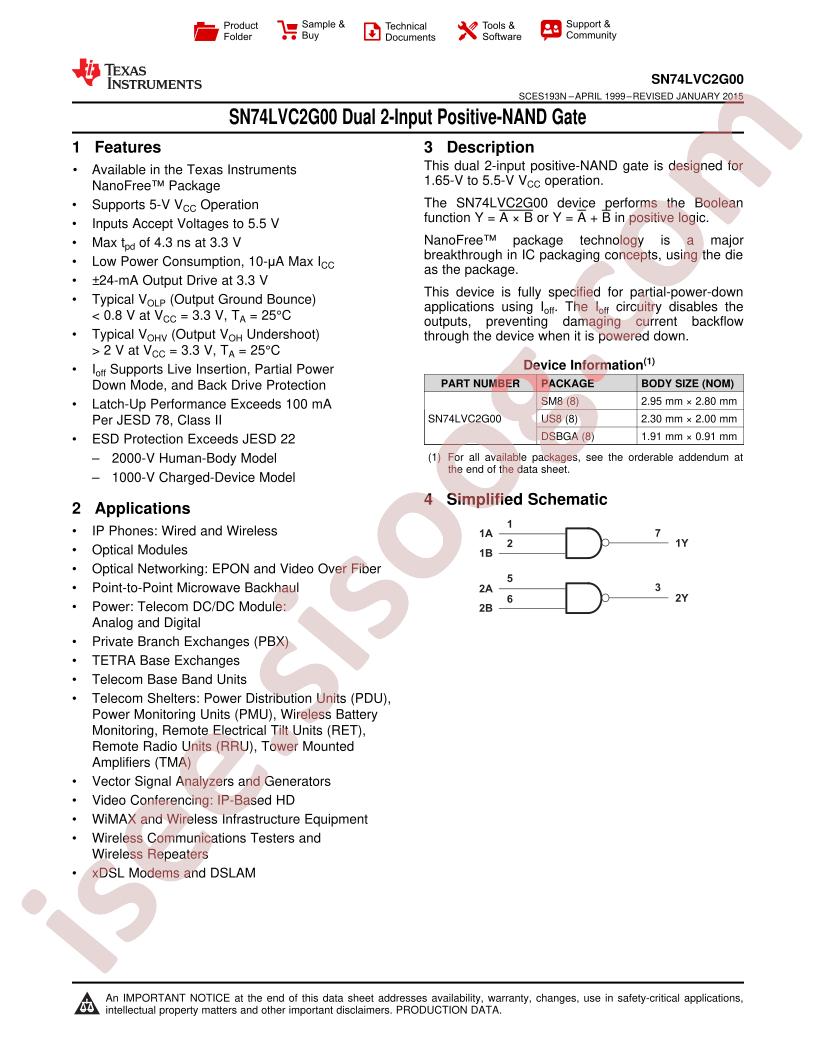

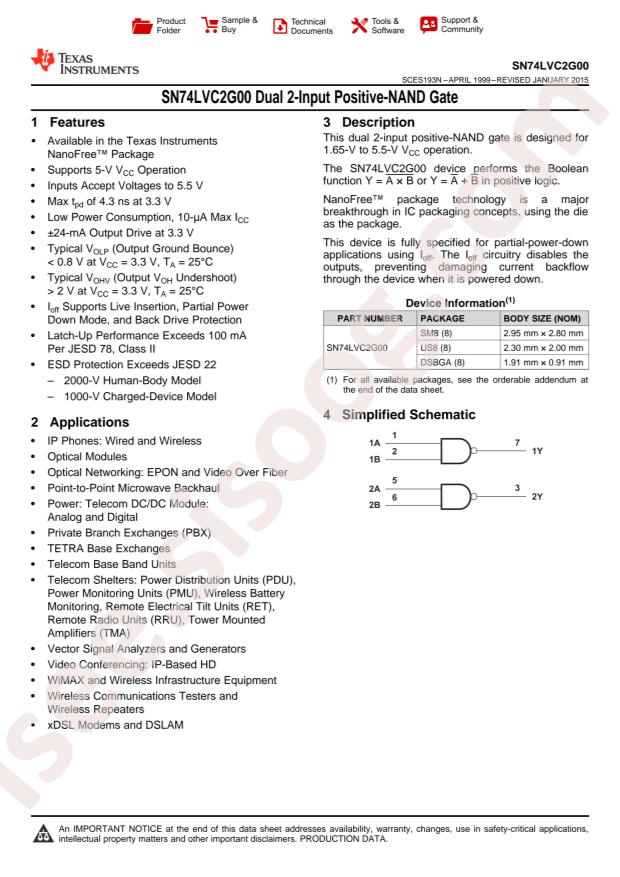

دیتاشیت SN74LVC2G00DCTR
مشخصات دیتاشیت
| نام دیتاشیت |
SN74LVC2G00
|
| حجم فایل |
1055.923
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
24
|
مشخصات
-
RoHS:
true
-
Series:
-
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74LVC2G00DCTR
-
Sink Current:
32mA
-
Source Current:
32mA
-
Supply Voltage:
1.65V~5.5V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
2
-
Low Level Range (VIL):
0.7V~0.8V
-
Operating Temperature:
-40°C~+125°C
-
High Level Range (VIH):
1.7V~2V
-
Propagation Delay Time:
3.3ns@5V,50pF
-
Quiescent Current (Max):
10uA
-
Package:
TSSOP-8-3mm
-
Manufacturer:
Texas Instruments
-
Supplier Device Package:
SM8 (SSOP)
-
Base Part Number:
SN74LVC2G
-
Logic Type:
NAND Gate
-
Number of Circuits:
2
-
Packaging:
Cut Tape (CT)
-
Number of Inputs:
2
-
Current - Output High, Low:
32mA, 32mA
-
Max Propagation Delay @ V, Max CL:
3.3ns @ 5V, 50pF
-
Features:
-
-
Logic Level - High:
1.7V ~ 2V
-
Package / Case:
8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
-
Current - Quiescent (Max):
10µA
-
Mounting Type:
Surface Mount
-
Part Status:
Active
-
Voltage - Supply:
1.65V ~ 5.5V
-
Logic Level - Low:
0.7V ~ 0.8V
-
detail:
NAND Gate IC 2 Channel SM8 (SSOP)
