LM337KVURG3 数据手册
其他文档

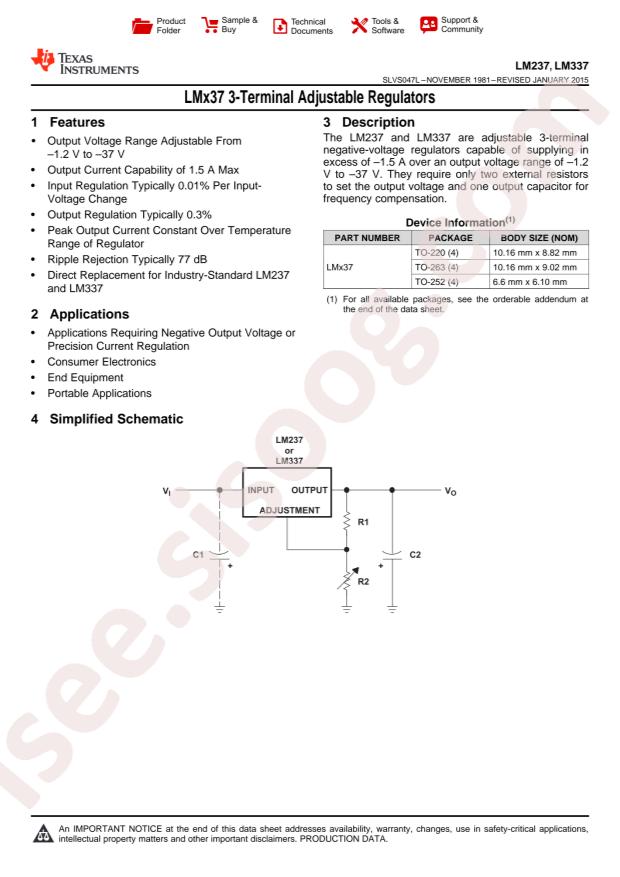

LM137, LM337 18 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM337KVURG3
- Output Type: Adjustable
- Output Current: 1.5A
- Output Voltage: 1.2V~37V
- Output Polarity: Negative
- Number of Outputs: 1
- Maximum Input Voltage: 40V
- Operating Temperature: 0°C~+125°C
- Power Supply Rejection Ratio (PSRR): 77dB@(120Hz)
- Package: TO-252
- Manufacturer: Texas Instruments
- Series: -
- Packaging: Bulk
- Part Status: Obsolete
- Output Configuration: Negative
- Number of Regulators: 1
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): -1.2V
- Voltage - Output (Max): -37V
- Voltage Dropout (Max): -
- Current - Output: 1.5A
- PSRR: 77dB ~ 60dB (120Hz)
- Control Features: -
- Protection Features: Over Current, Over Temperature
- Mounting Type: Through Hole
- Package / Case: TO-204AA, TO-3
- Supplier Device Package: TO-3
- Base Part Number: LM337
- detail: Linear Voltage Regulator IC 1 Output 1.5A TO-3
