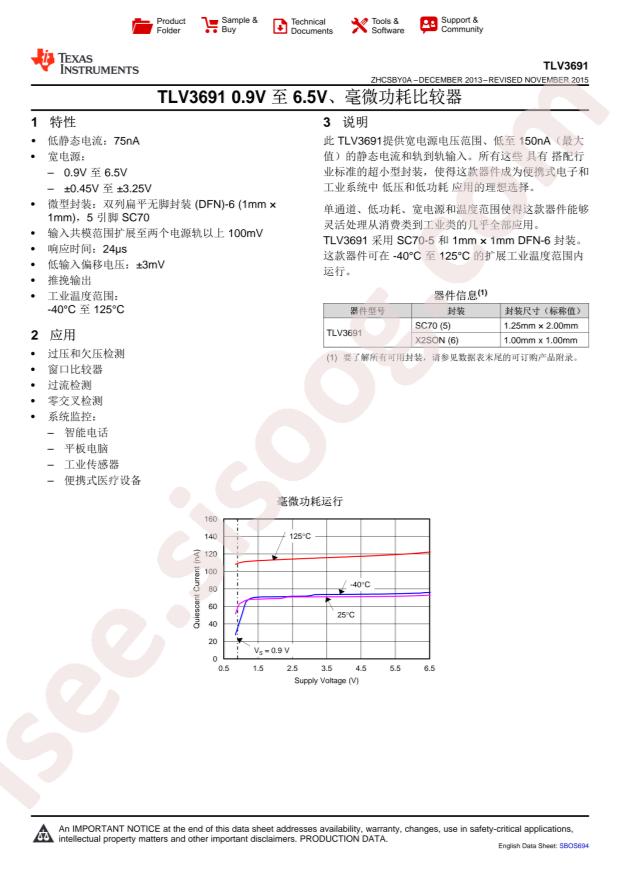

- دیتاشیت TLV3691IDCKR
دیتاشیت TLV3691IDCKR
مشخصات دیتاشیت
| نام دیتاشیت | TLV3691IDCKR |
|---|---|
| حجم فایل | 66.106 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |
TLV3691IDCKR |
دانلود دیتاشیت |
|---|
سایر مستندات
TLV3691 Datasheet 31 pages
Analog Signal Chain Guide 11 pages
مشخصات فنی
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: Texas Instruments TLV3691IDCKR
- Output Type: 互补
- Supply Voltage: 0.9V~6.5V;0.45V~3.25V
- Number of Elements: -
- Operating Temperature: -40°C~+125°C
- Input Bias Current (Ib): 100pA
- Input Offset Voltage (Vos): 3mV
- Input Hysteresis Voltage (Vhys): -
- Common Mode Rejection Ratio (CMRR): 80dB
- Package: SC-70-5
- Manufacturer: Texas Instruments
- Voltage - Supply, Single/Dual (±): 0.9V ~ 6.5V, ±0.45V ~ 3.25V
- Type: General Purpose
- Supplier Device Package: SC-70-5
- Voltage - Input Offset (Max): 3mV
- Packaging: Cut Tape (CT)
- Mounting Type: Surface Mount
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Current - Output (Typ): 42mA
- Current - Input Bias (Max): 100pA
- Propagation Delay (Max): 35µs
- Part Status: Active
- Series: -
- Base Part Number: TLV369
- CMRR, PSRR (Typ): -
- Hysteresis: -
- Current - Quiescent (Max): 150nA
- detail: Comparator General Purpose Push-Pull SC-70-5
