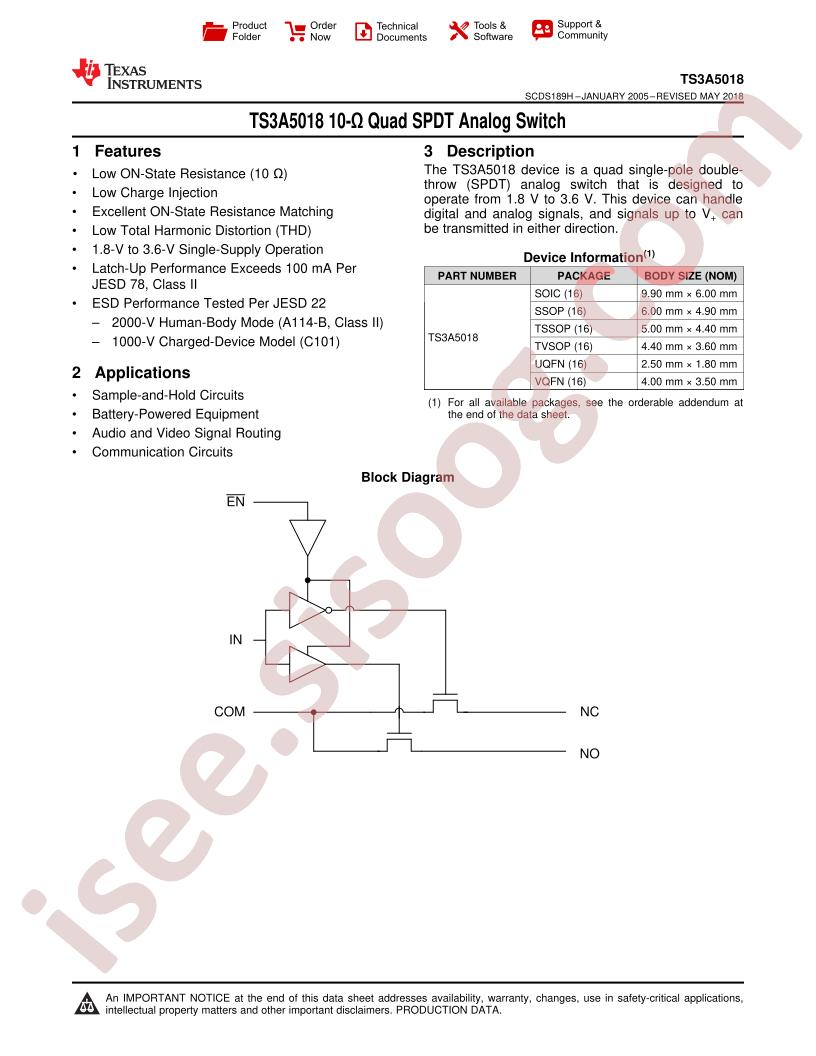

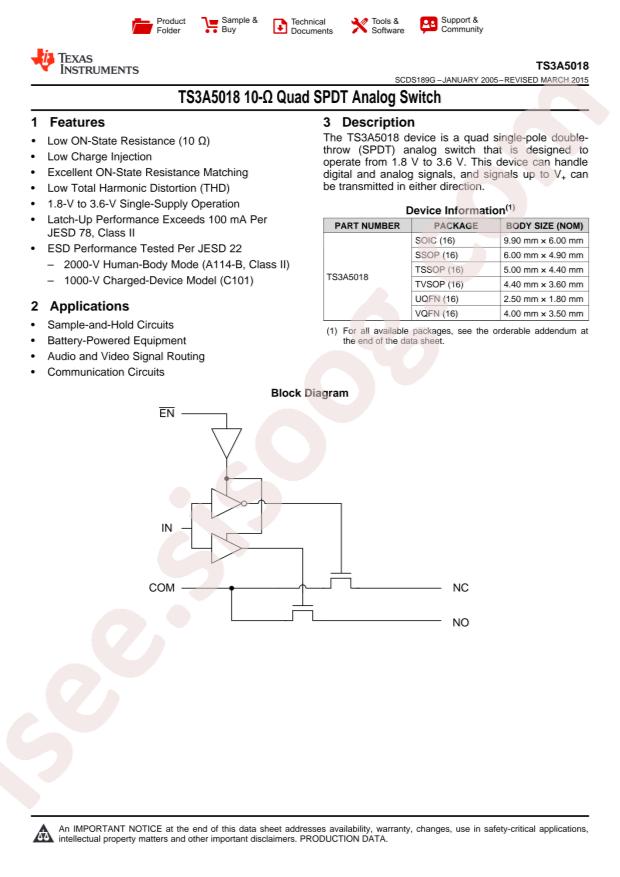

دیتاشیت TS3A5018RSVR
مشخصات دیتاشیت
| نام دیتاشیت |
TS3A5018
|
| حجم فایل |
1961.352
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
42
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Texas Instruments TS3A5018RSVR
-
Switch Circuit:
-
-
Package:
UQFN-16(1.8x2.6)
-
Manufacturer:
Texas Instruments
-
Channel Capacitance (CS(off), CD(off)):
4.5pF, 9pF
-
Channel-to-Channel Matching (ΔRon):
300mOhm
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Packaging:
Cut Tape (CT)
-
Multiplexer/Demultiplexer Circuit:
2:1
-
-3db Bandwidth:
300MHz
-
Charge Injection:
2pC
-
Current - Leakage (IS(off)) (Max):
100nA
-
On-State Resistance (Max):
10Ohm
-
Package / Case:
16-UFQFN
-
Voltage - Supply, Single (V+):
1.65V ~ 3.6V
-
Switch Time (Ton, Toff) (Max):
8ns, 6.5ns
-
Supplier Device Package:
16-UQFN (2.6x1.8)
-
Mounting Type:
Surface Mount
-
Base Part Number:
TS3A50
-
Voltage - Supply, Dual (V±):
-
-
Number of Circuits:
4
-
Crosstalk:
-48dB @ 10MHz
-
Part Status:
Active
-
Series:
-
-
detail:
4 Circuit IC Switch 2:1 10Ohm 16-UQFN (2.6x1.8)
