دیتاشیت LM317AEMP
مشخصات دیتاشیت
| نام دیتاشیت | LM317A Datasheet |
|---|---|
| حجم فایل | 4961.904 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 43 |

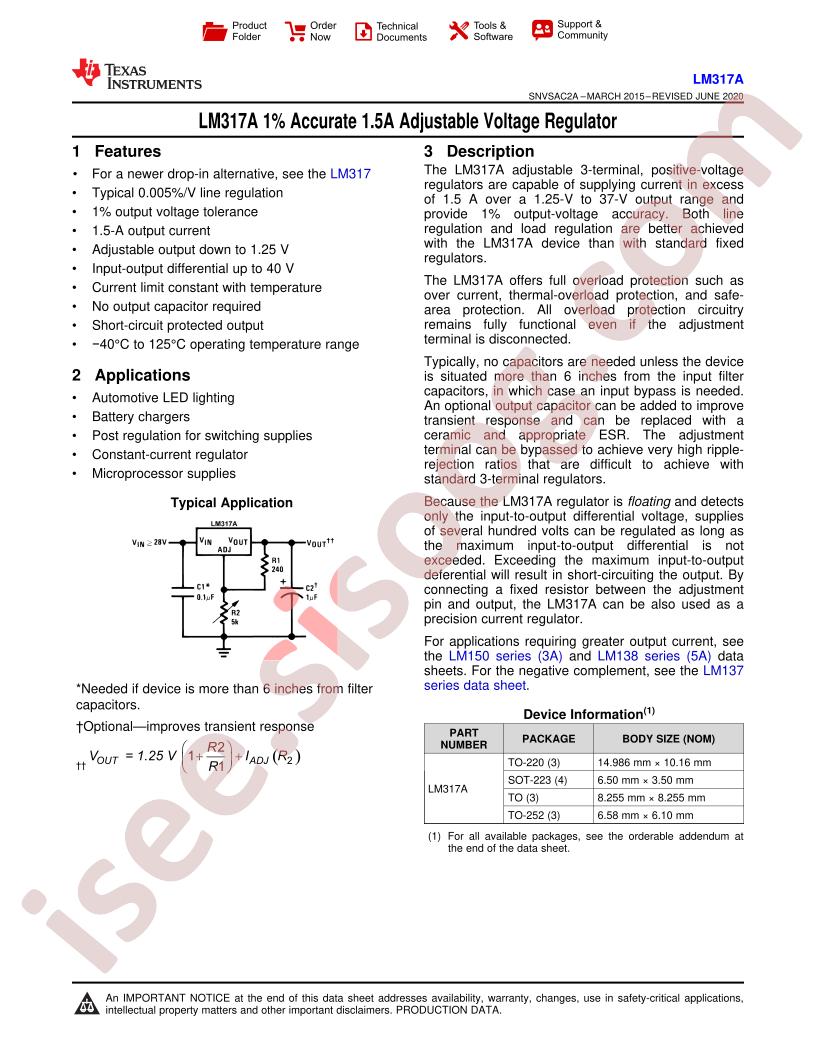

دانلود دیتاشیت LM317A Datasheet |
LM317A Datasheet Datasheet |
|---|
مشخصات
- Number of Regulators: 1
- Current - Quiescent (Iq): 10mA
- Base Part Number: LM317
- Voltage - Input (Max): 40V
- Operating Temperature: -40°C ~ 125°C
- Supplier Device Package: SOT-223-4
- Voltage - Output (Max): 37V
- Packaging: Cut Tape (CT)
- Mounting Type: Surface Mount
- Protection Features: Over Temperature, Short Circuit
- Control Features: -
- Manufacturer: Texas Instruments
- Voltage - Output (Min/Fixed): 1.25V
- Output Type: Adjustable
- Voltage Dropout (Max): -
- Part Status: Not For New Designs
- Series: -
- Current - Output: 1.5A
- PSRR: 80dB ~ 65dB (120Hz)
- Output Configuration: Positive
- Package / Case: TO-261-4, TO-261AA
- detail: Linear Voltage Regulator IC 1 Output 1.5A SOT-223-4
