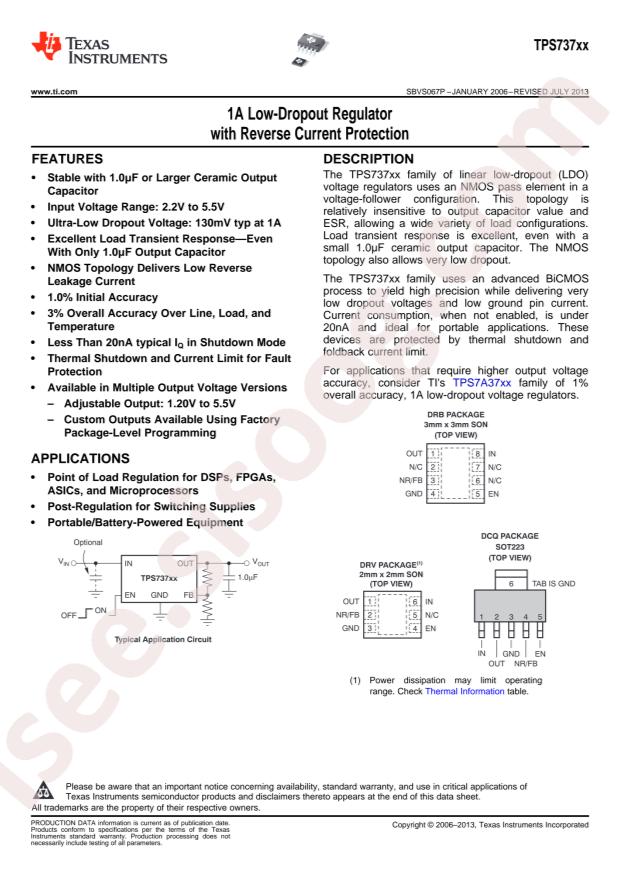

دیتاشیت TPS73733DCQR
مشخصات دیتاشیت
| نام دیتاشیت |
TPS737xx
|
| حجم فایل |
2454.587
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
40
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS73733DCQR
-
Output Type:
Fixed
-
Output Current:
1A
-
Output Voltage:
3.3V
-
Dropout Voltage:
500mV@(1A)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
400uA
-
Power Supply Rejection Ratio (PSRR):
58dB@(100Hz),37dB@(10kHz)
-
Package:
SOT-223-6
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Control Features:
Enable
-
Voltage - Output (Max):
-
-
Current - Quiescent (Iq):
400µA
-
Supplier Device Package:
SOT-223-6
-
Voltage Dropout (Max):
0.5V @ 1A
-
Number of Regulators:
1
-
PSRR:
58dB ~ 37dB (100Hz ~ 10kHz)
-
Mounting Type:
Surface Mount
-
Voltage - Output (Min/Fixed):
3.3V
-
Current - Output:
1A
-
Voltage - Input (Max):
5.5V
-
Current - Supply (Max):
1.3mA
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
TPS737
-
Package / Case:
SOT-223-6
-
Part Status:
Active
-
Output Configuration:
Positive
-
detail:
Linear Voltage Regulator IC 1 Output 1A SOT-223-6
