دیتاشیت TS881ILT

TS881

مشخصات دیتاشیت

نام دیتاشیت TS881
حجم فایل 935.342 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت TS881

TS881 Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: STMicroelectronics TS881ILT
  • Output Type: Push Pull
  • Supply Voltage: 0.85V~5.5V
  • Number of Elements: -
  • Operating Temperature: -40°C~+125°C
  • Input Bias Current (Ib): 10pA
  • Input Offset Voltage (Vos): 6mV
  • Input Hysteresis Voltage (Vhys): 4.2mV
  • Common Mode Rejection Ratio (CMRR): 78dB

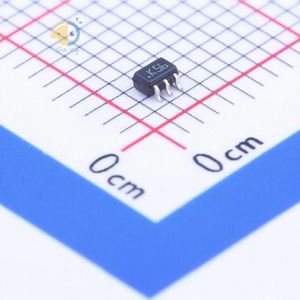

  • Package: SOT-23-5
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: General Purpose
  • Voltage - Supply, Single/Dual (±): 0.85V ~ 5.5V
  • Voltage - Input Offset (Max): 6mV @ 5V
  • Current - Input Bias (Max): 10pA
  • Current - Output (Typ): 36mA
  • Current - Quiescent (Max): 500nA
  • CMRR, PSRR (Typ): 78dB CMRR
  • Propagation Delay (Max): 22µs
  • Hysteresis: 4.2mV
  • Package / Case: SC-74A, SOT-753
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-23-5
  • Base Part Number: TS881
  • detail: Comparator General Purpose Push-Pull SOT-23-5
