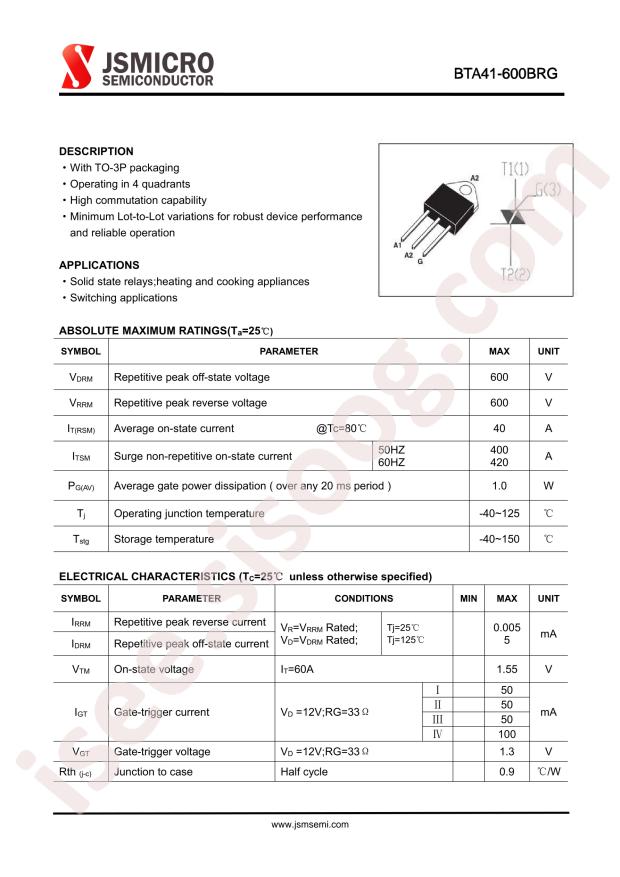

دیتاشیت BTA41-600BRG
مشخصات دیتاشیت
| نام دیتاشیت | BT(A,B)40, BTB41 |
|---|---|
| حجم فایل | 103.588 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |

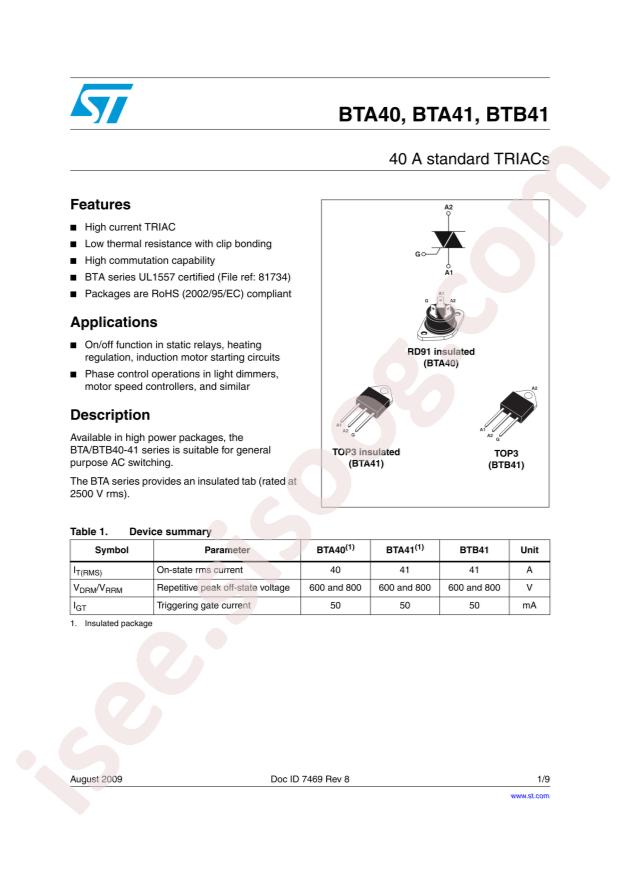

دانلود دیتاشیت BT(A,B)40, BTB41 |
BT(A,B)40, BTB41 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/TRIACs
- SCR Type: -
- Datasheet: STMicroelectronics BTA41-600BRG
- Holding Current (Ih): 80mA
- Operating Temperature: -40°C~+125°C@(Tj)
- Gate Trigger Current(Igt): 50mA
- Gate Trigger Voltage (Vgt): 1.3V
- RMS On-State Current(It (rms)): 40A
- Peak Repetitive Off?State Voltage (Vdrm): 600V
- Package: TOP-3
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Triac Type: Standard
- Voltage - Off State: 600V
- Current - On State (It (RMS)) (Max): 40A
- Voltage - Gate Trigger (Vgt) (Max): 1.3V
- Current - Non Rep. Surge 50, 60Hz (Itsm): 400A, 420A
- Current - Gate Trigger (Igt) (Max): 50mA
- Current - Hold (Ih) (Max): 80mA
- Configuration: Single
- Mounting Type: Through Hole
- Package / Case: TOP-3 Insulated
- Supplier Device Package: TOP3
- Base Part Number: BTA41
- detail: TRIAC Standard 600V 40A Through Hole TOP3
